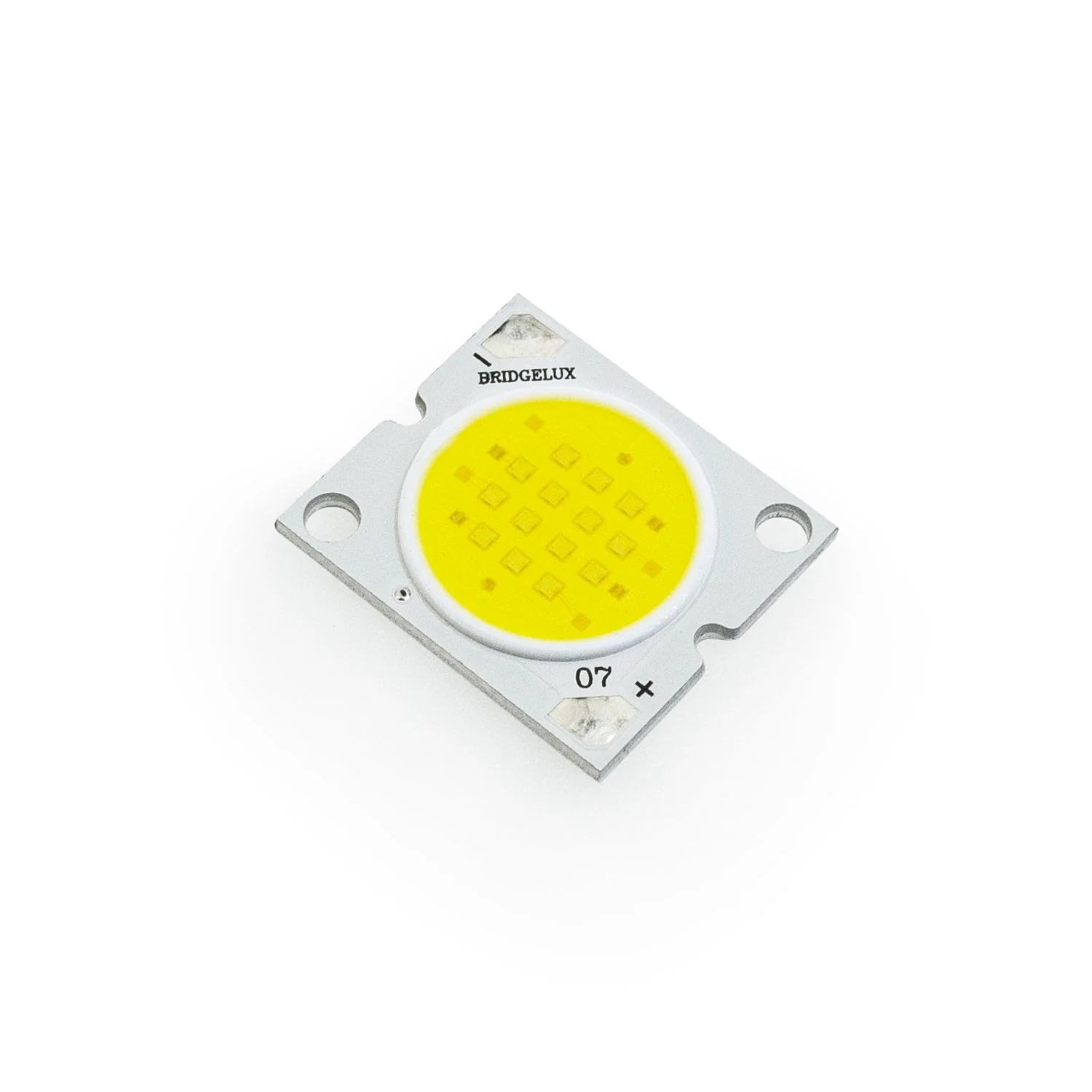

BXRA-56C1100-B Constant Current COB LED Module, 500mA 10W 5600K(Cool White)

Product image 1
Product image 2
Product image 3

BXRA-56C1100-B Constant Current COB LED Module, 500mA 10W 5600K(Cool White)

BXRA-56C1100-B Constant Current COB LED Module, 500mA 10W 5600K(Cool White)

Model BXRA-56C1100-B
Brand Bridgelux
Current
 500mA
Voltage Range 18.6- 22.8V
Typical Voltage 20.7V
Power 10.4W
LED Type COB
Luminous Flux 810-1320 lumens
Efficacy 128 Lm/W
Color Temperature 5600K (Cool White)
Rendering Index CRI>90
Dimmable Yes
Junction temperature (Tj) 25ºC
Operating Case Temperature Max Range (Tc) 105°C
Material: Metallic base
Soldering Temperature 350ºC
Dimensions 22.30 x 25.40 x 1.5mm (0.875 x 1 x 0.05in)





Features:

  • Low power consumption, high energy efficiency.
  • Also available in other color temperatures and brightnesse.
  • Has a lifespan of more than 48,000 hours.
  • Low heat generation and energy-efficient as compared to other incandescent, halogen, and fluorescent lamps.
  • Applicable for DIY projects, decorative lights, factory or industrial use, school projects, and also, DIY household lights.
  • Use Thermal Grease or Thermal Pad for installation.
  • Have 2 years of store warranty.
$18.36
BXRA-56C1100-B Constant Current COB LED Module, 500mA 10W 5600K(Cool White)—
$18.36

Product Information

Shipping & Returns

Description

Model BXRA-56C1100-B
Brand Bridgelux
Current
 500mA
Voltage Range 18.6- 22.8V
Typical Voltage 20.7V
Power 10.4W
LED Type COB
Luminous Flux 810-1320 lumens
Efficacy 128 Lm/W
Color Temperature 5600K (Cool White)
Rendering Index CRI>90
Dimmable Yes
Junction temperature (Tj) 25ºC
Operating Case Temperature Max Range (Tc) 105°C
Material: Metallic base
Soldering Temperature 350ºC
Dimensions 22.30 x 25.40 x 1.5mm (0.875 x 1 x 0.05in)





Features:

  • Low power consumption, high energy efficiency.
  • Also available in other color temperatures and brightnesse.
  • Has a lifespan of more than 48,000 hours.
  • Low heat generation and energy-efficient as compared to other incandescent, halogen, and fluorescent lamps.
  • Applicable for DIY projects, decorative lights, factory or industrial use, school projects, and also, DIY household lights.
  • Use Thermal Grease or Thermal Pad for installation.
  • Have 2 years of store warranty.
