Model No	OTM-W60-36-F
Input Voltage	100-277V AC
Input Current	0.86A
Input Frequency	50-60 Hz
Output Voltage	36V DC
Output Current	1.6A
Wattage	60W
Dimmable	Yes (0-10 Dimming)
IP Rating	IP67 (Dry, Damp, and Wet Locations)

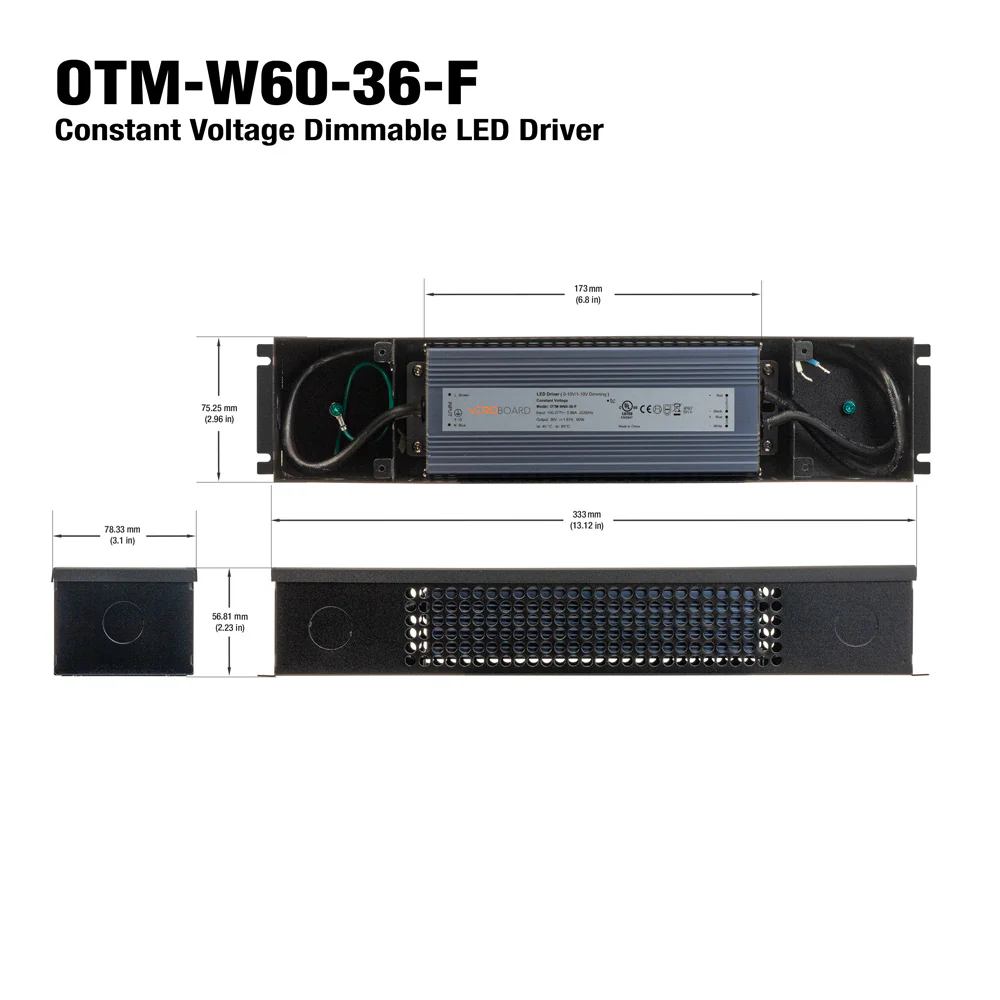

Dimensions	333 x 75.25 x 56.81mm (13.12 x 2.96 x 2.23in)
Ambient Temperature(Ta)	40℃
Case Temperature(Tc)	85℃
Certifications



Features:

• 60W LED driver with constant output voltage of 36V DC and output current of 1.6A
• Input voltage range of 100-277V AC for compatibility with various electrical systems
• Input current of 0.86A at an input frequency of 50-60 Hz
• Dimmable with 0-10V dimming capability for adjustable brightness levels
• IP67 rating for protection against dust, water, and environmental factors
• Compact dimensions of 333 x 78.33 x 56.81mm (13.12 x 3.1 x 2.23in)
• Ambient temperature rating of 40℃ for reliable operation
• Case temperature rating of 85℃ for safe usage
• Suitable for a wide range of applications, including indoor and outdoor lighting, commercial lighting, and architectural lighting.
