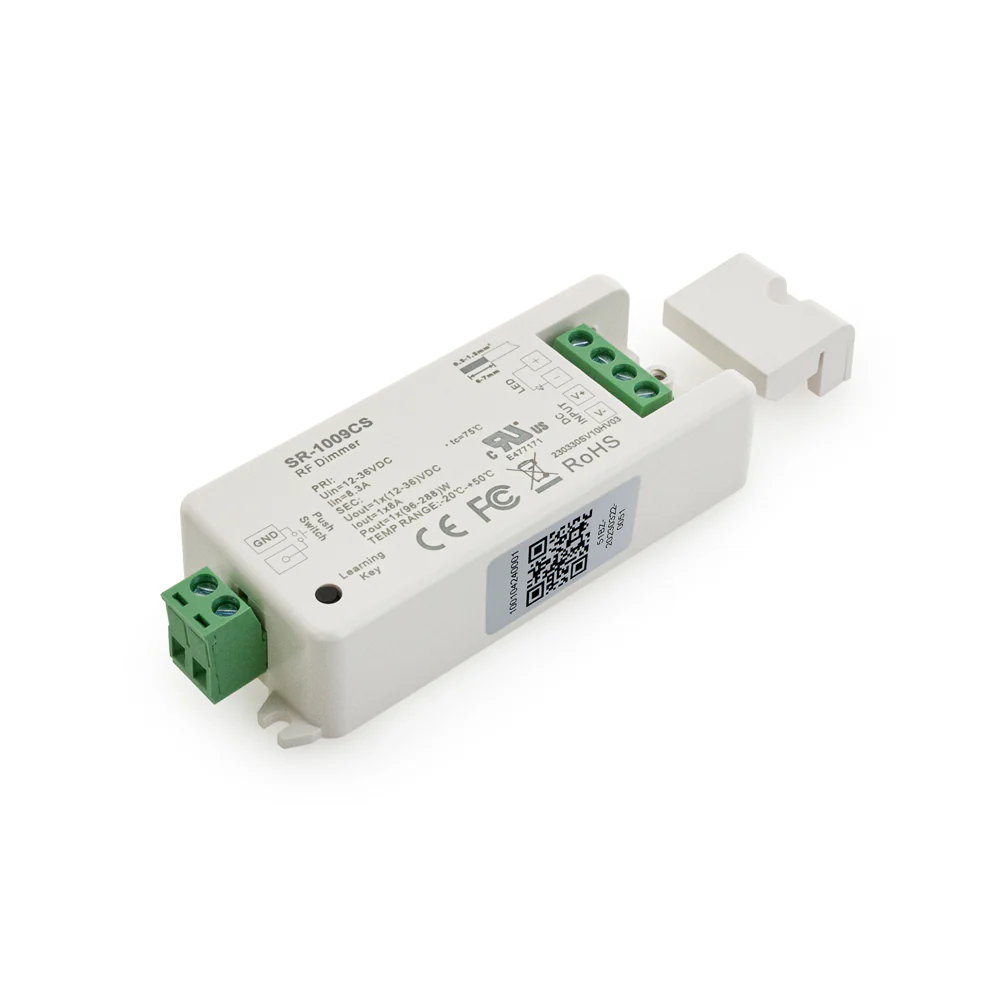

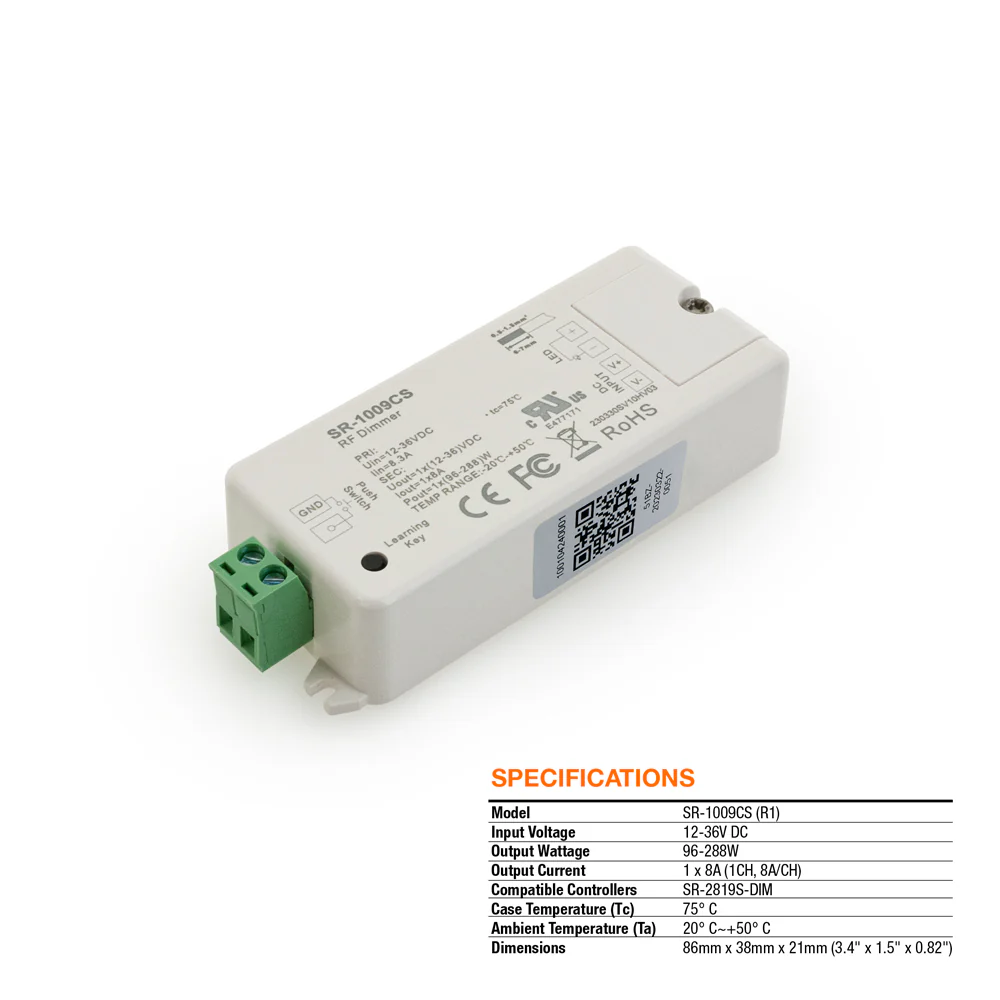

Constant Voltage Receiver SR-1009CS single color 12-36V 96-288W
Ā
| Model | SR-1009CS (R1) |
| Input Voltage | 12-36V DC |
| Output Current | 1 x 8A (1CH, 8A/CH) |
| Wattage | 96-288W |
| Compatible Remote ControllersĀ (Sold Separately) | SR-2819S-DIMĀ (R1) |
| Case Temperature(Tc) | 75ā |
| Ambient Temperature(Ta) | 20ā-+50ā |

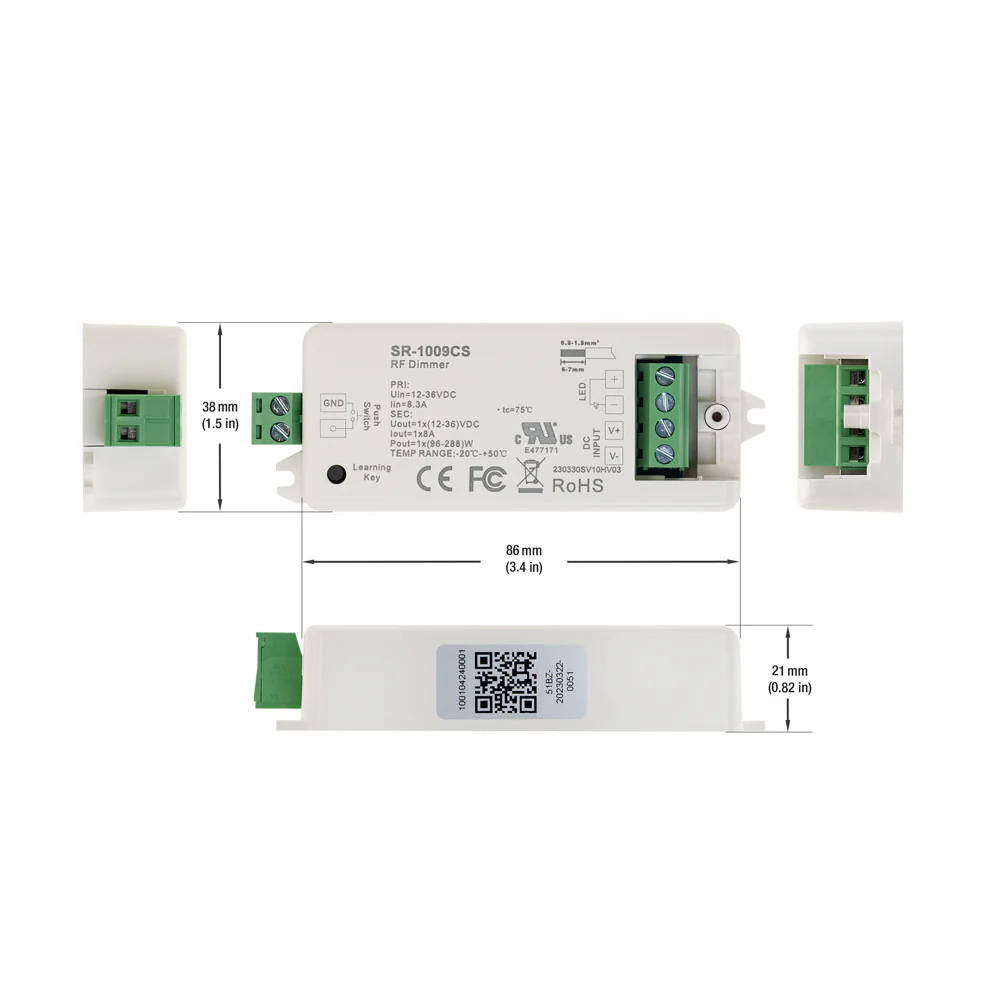

| Dimensions | 86 x 38 x 21mm (3.4 x 1.5 x 0.8in) |
| Certifications |
 Ā
|
Ā
Feature:
- 1 channel 12-36V constant voltage RF Receiver, maximum 8A per channel
- Designed to dim and switch single color LED lighting
- Full compatibility with a variety of single color RF remotes
- Multiple zones can be controlled separately or synchronously with endless receivers in each zone
- Each receiver can be controlled by up to 8 different remotes
- Smooth brightness adjustment without any flickering
- Radio frequency available for use is 869.5/434/916.5MHz.
