Model	CDAC-20-30135-120V-30
COB Holder Model No	H42135AC
LED Type	COB LED
No LED chips	20
Wattage:	6W
Voltage:	120V AC
Luminous Intensity	420 lumens
Color Temperature	3000K (Warm White)
Dimmable	Yes
Rendering Index	CRI>90
IP Rating	IP20 (Indoor rated)
COB Holder Dimensions	∅42.3mm (1.66 in) x H5.88mm (0.23 in)
COB Module Outer Diameter	∅27 mm (1.06 in)
Operating Temperature	-60 ~ +105℃
Storage Temperature	-60 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

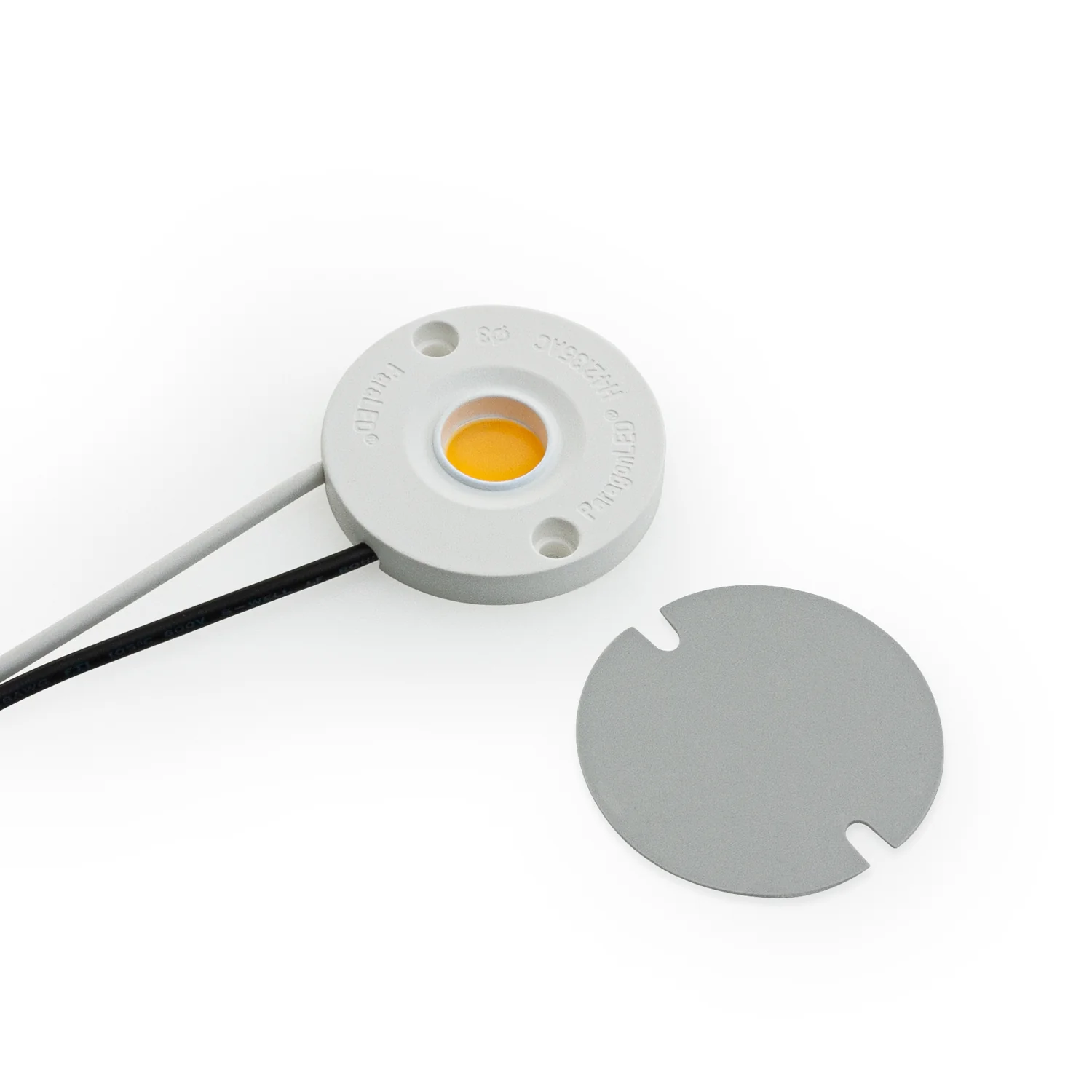

Included Content	COB Module, COB LED Holder, Thermal Pad
Certifications



Features:

• Low power consumption and high energy efficiency.
• Suitable for damp locations.
• An aluminum heat sink is required to prevent overheating, as failure to do so may result in serious luminous decay.
• COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
• Ground light fixtures during the design process.
• COB LEDs are commonly used in various types of luminaires.

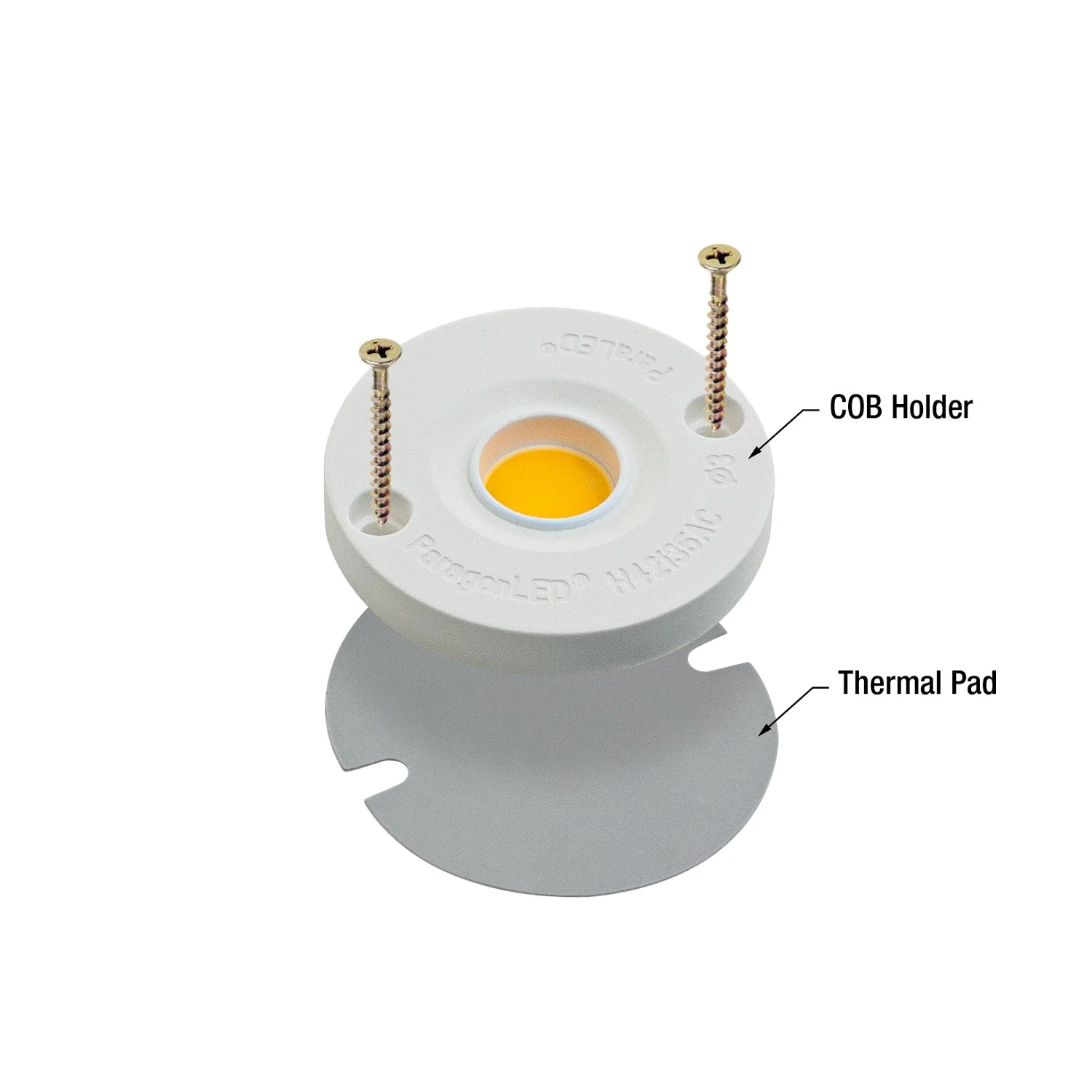

• The COB holder allows for mechanical securing, electrical connection, and pressing to a heat sink.
• The silicone grease thermal pad serves as a heat sink and aids in better heat dissipation, thereby increasing the lifespan of the module.
