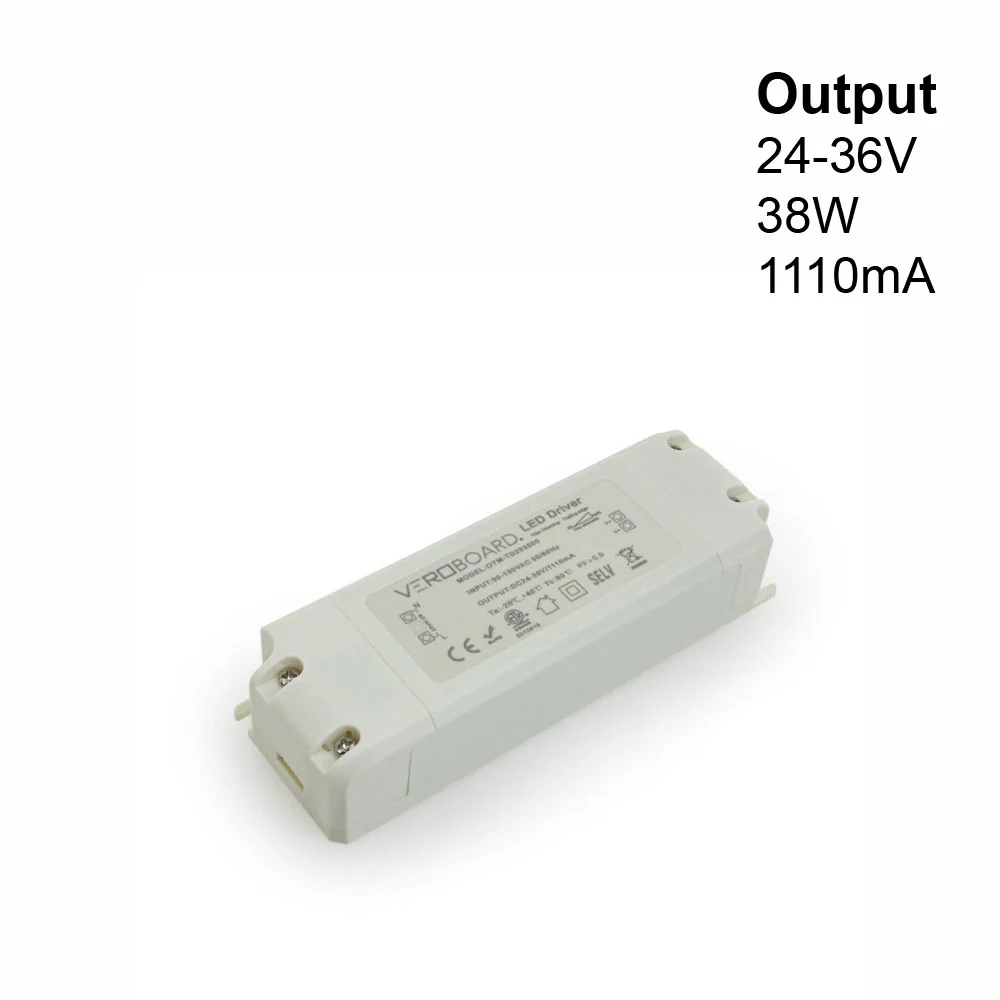

OTM-TD203500-1110-38 Constant Current Triac Dimming LED Driver, 1110mA 24-36V 38W
| Model | OTM-TD203500-1110-38 |
| Input Voltage | 90-130V AC |
| Input Current | 0.9A |
| Input Frequency | 50-60Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 1110mA |
| Output Power | 38W |
| Output Voltage | 24-36V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Indoor use only) |

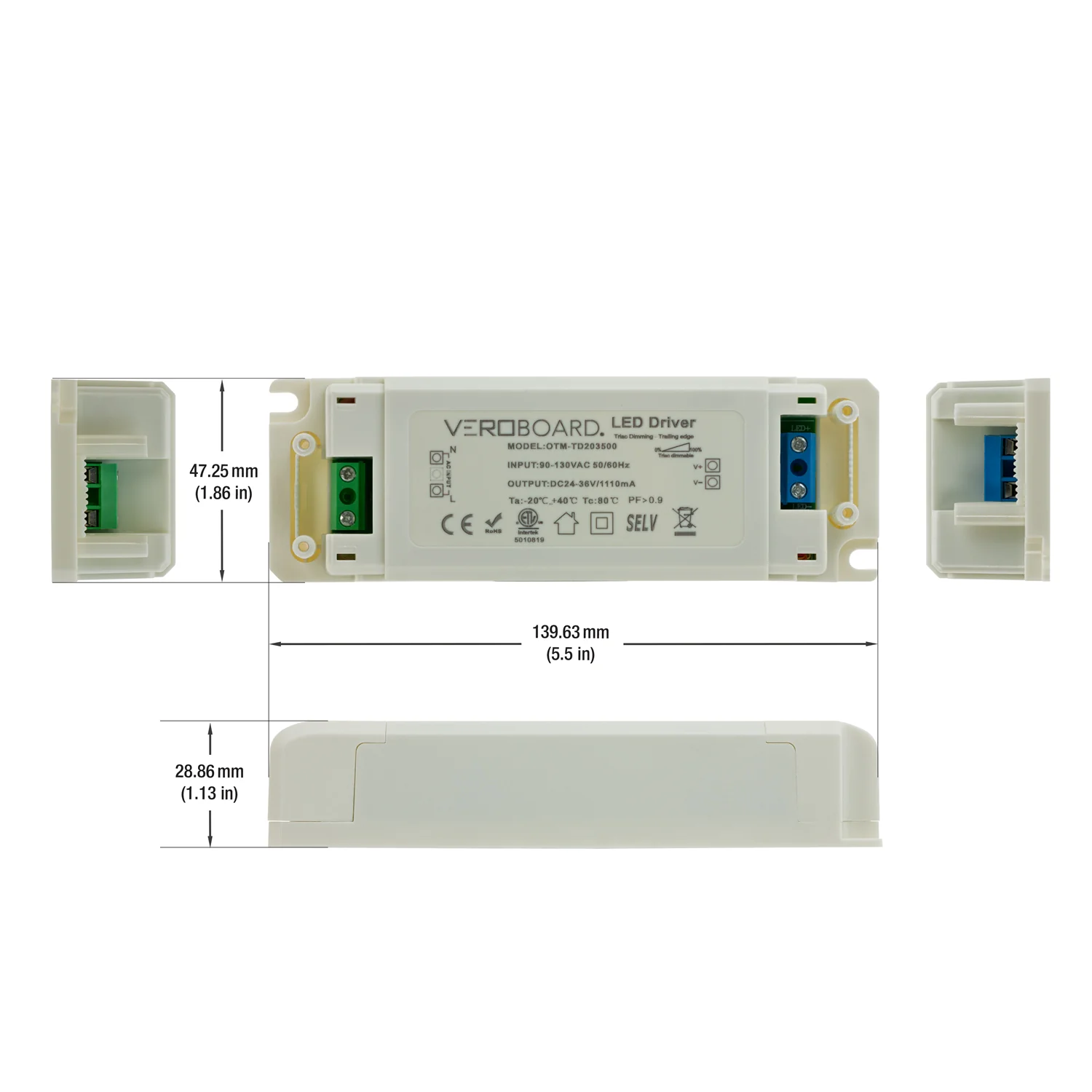

| Dimensions | 139mm x 47mm x 28mm (5.5in x 1.8in x 1.1in) |
| Class Certification | Class 2 |
| Certification |

|
Features:
- Constant current LED driver for powering LED lighting fixtures
- Input voltage range: 90-130V AC
- Power factor greater than 0.95 for efficient power delivery
- Input current: 0.9A
- Input frequency range: 50-60Hz
- Output regulated current: 1110mA
- Maximum output power: 38W
- Output voltage range: 24-36V DC
- Dimmable using Triac Dimming for flexible lighting control
- High efficiency: over 85% for minimal energy wastage
- Ambient temperature (Ta) range: up to 40°C
- Case temperature (Tc) can reach up to 90°C
- IP20 rating for indoor use only
- Class 2 certified for low-voltage lighting applications.
