Model	OTM-TD253100-370-20
Input Voltage	90-130V AC
Input Current	0.9A
Input Frequency	50-60Hz
Power Factor	PF>0.95
Efficiency	>85%
Output Regulated Current	370mA
Output Power	20W
Output Voltage	32-54V DC
Dimmable	Yes (Triac Dimming)
Ambient Temperature (Ta)	40°C
Case Temperature (Tc)	90°C
IP Rating	IP20 (Dry and Damp Locations)

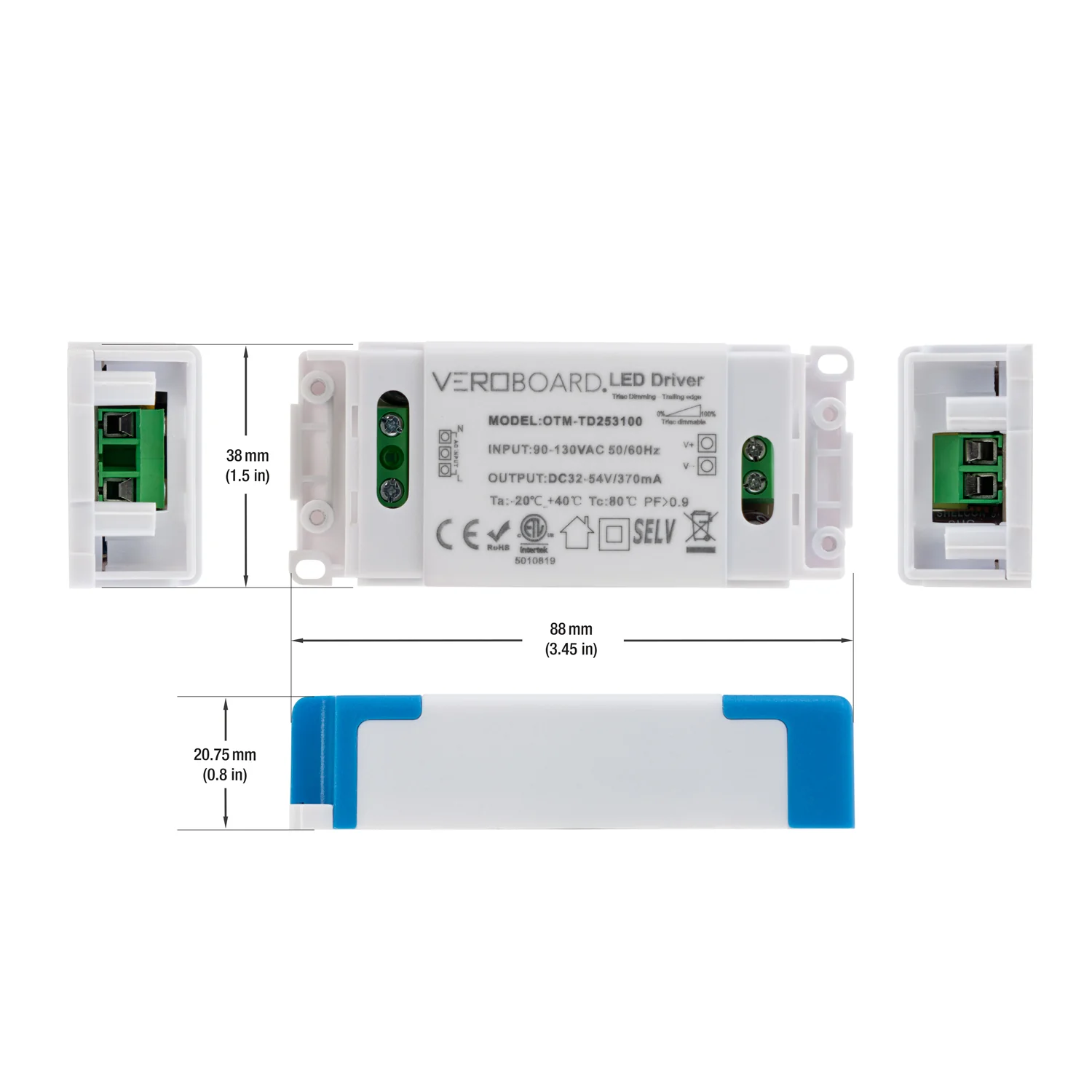

Dimensions	88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in)
Class Certification	Class 2
Certification



Features:

• Regulated output current: The OTM-TD253100-370-20 Constant Current LED Driver provides a regulated output current of 370mA, ensuring a stable and consistent power supply to the connected LED lighting applications.
• Output power: The driver has an output power of 20W, delivering sufficient power to drive the LED lights effectively.
• Dimmable: The driver is dimmable, allowing for flexible control of the brightness of the connected LED lights, providing versatility in lighting design and ambiance.
• Wide input voltage range: It accepts an input voltage range of 90-130V AC, accommodating different electrical systems and environments.
• Power factor and efficiency: The driver has a power factor greater than 0.95 and an efficiency greater than 85%, ensuring high energy efficiency and reducing power losses.
• Output voltage range: The driver provides an output voltage range of 32-54V DC, making it compatible with a wide range of LED lighting applications.
• IP20 rating: The driver is designed for indoor use and has an IP20 rating, providing protection against solid objects larger than 12.5mm and ensuring safe operation in dry and damp locations.
• Compact size: With dimensions of 88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in), the driver has a small and compact size, facilitating easy installation in a variety of lighting fixtures.
• Class 2 certification: The driver is classified as Class 2, ensuring compliance with safety standards and limited power output, making it safe to use.
• Temperature ratings: The driver can operate at an ambient temperature of up to 40°C, and it has a case temperature rating of up to 90°C, enabling reliable operation in various temperature conditions.
• Triac dimming compatibility: The driver supports Triac Dimming, allowing for smooth and reliable dimming control of the connected LED lights, enhancing lighting flexibility and customization.
