AC2800S72D-D3 Antron CC 0-10V Dimming LED Driver with Selectable Current 2800-2500-1800mA 16-26V 72W max

Product image 1
Product image 2

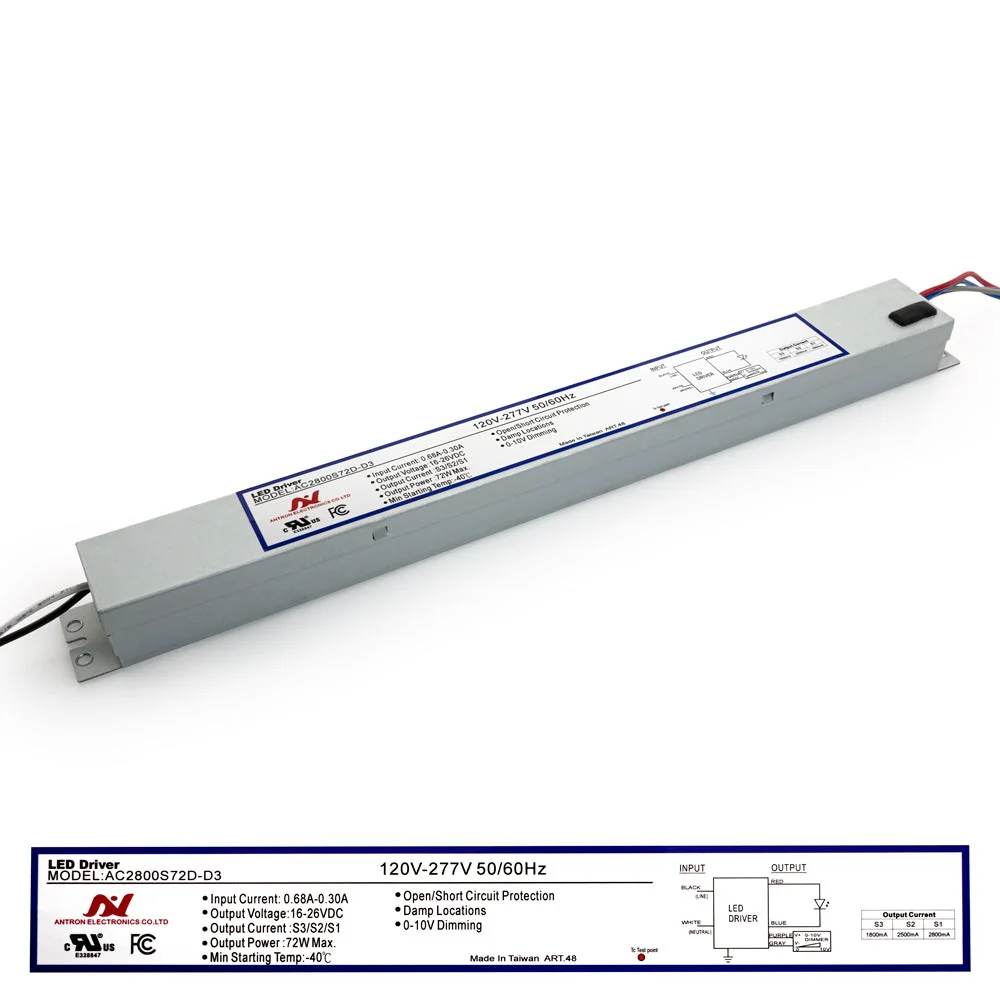

Product image 3

AC2800S72D-D3 Antron CC 0-10V Dimming LED Driver with Selectable Current 2800-2500-1800mA 16-26V 72W max

AC2800S72D-D3 Antron CC 0-10V Dimming LED Driver with Selectable Current 2800-2500-1800mA 16-26V 72W max


Model AC2800S72D-D3
Input Voltage 120-277V AC
Input Current 0.68-0.3A
Input Frequency 50/60 Hz
Output Voltage 16-26V
Output Power 72W max
Output Regulated Current Selectable current from 1800mA/ 2500mA/ 2800mA
Dimmable Yes (0-10V Dimming)
IP Rating IP20 (Indoor Rated)
Dimensions 39.5 × 3.8 × 3 cm (15.56 x 1.5 x 1.16 in)
Certification



Features

  • The output current level can be adjusted from 1800ma, 2500ma, and 2800ma by the DIP switch.
  • Customized current (power) options.
  • Open/Short/Over-Voltage/Over Temp protection.
  • Universal input voltage 120-277V AC
  • Applicable for dry and damp locations
$55.07
AC2800S72D-D3 Antron CC 0-10V Dimming LED Driver with Selectable Current 2800-2500-1800mA 16-26V 72W max—
$55.07

Product Information

Shipping & Returns

Description


Model AC2800S72D-D3
Input Voltage 120-277V AC
Input Current 0.68-0.3A
Input Frequency 50/60 Hz
Output Voltage 16-26V
Output Power 72W max
Output Regulated Current Selectable current from 1800mA/ 2500mA/ 2800mA
Dimmable Yes (0-10V Dimming)
IP Rating IP20 (Indoor Rated)
Dimensions 39.5 × 3.8 × 3 cm (15.56 x 1.5 x 1.16 in)
Certification



Features

  • The output current level can be adjusted from 1800ma, 2500ma, and 2800ma by the DIP switch.
  • Customized current (power) options.
  • Open/Short/Over-Voltage/Over Temp protection.
  • Universal input voltage 120-277V AC
  • Applicable for dry and damp locations
