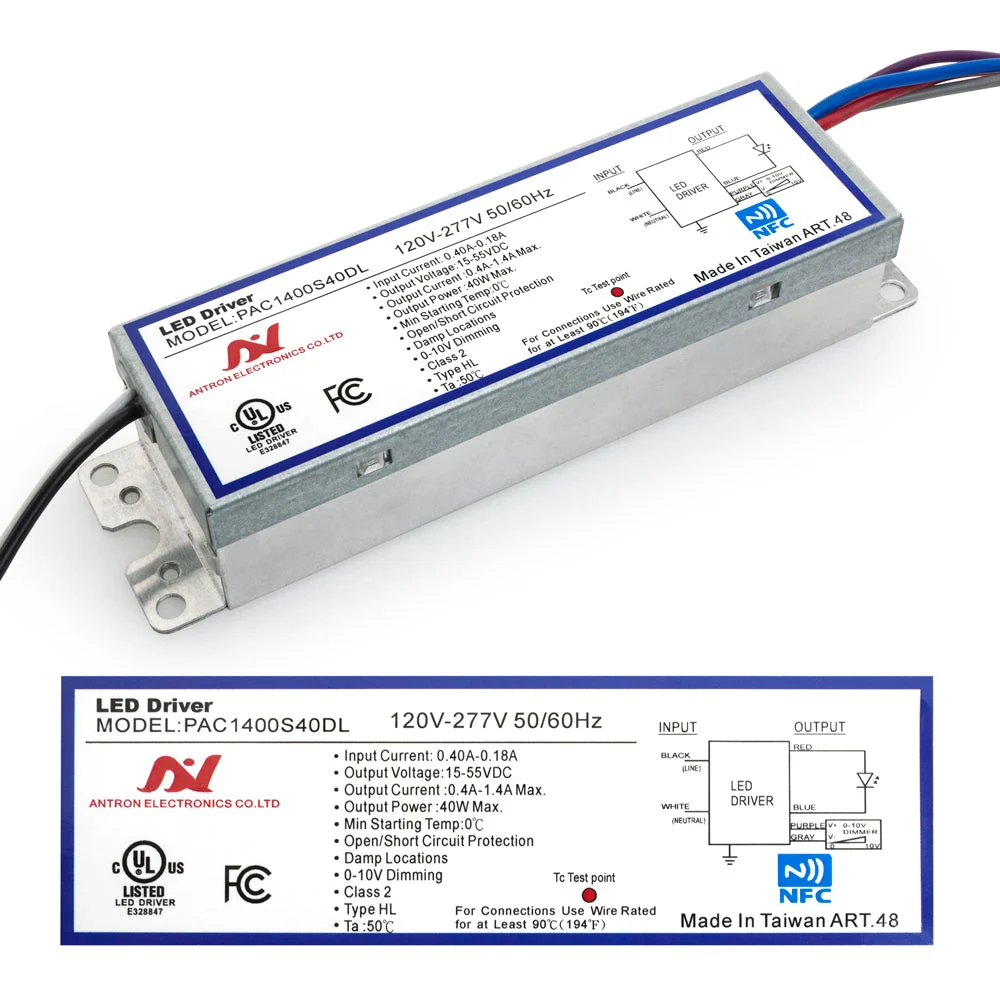

Model	PAC1400S40DL
Input Voltage	120-277V AC
Input Current	0.4A-0.18A
Input Frequency	50/60 Hz
Output Voltage	15-55V
Output Power	40W max
Output Regulated Current Range	Programmable Output Current 400mA, 450mA, 500mA, 550mA, 600mA,  650mA, 700mA, 750mA, 800mA, 850mA,900mA 950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA, 1300mA, 1350mA, 1400mA
Dimmable	3 in 1 Dimming ( PWM, 1-10V, Resistance)
IP Rating	IP20 (Indoor Rated)
Dimensions	15.8 × 4.4 × 3.25 cm (6.25 x 1.73 x 1.28 in)
Class Certification	Class 2 / TypeHL
Certification

Features

• It perfectly matches the LED lighting load and maximizes its performance with a single driver.
• The programmable option allows you to create your custom output current for your desired LED lightings.
• We can customize the desired output current for your driver to avoid the hassle of buying the programming wand or downloading the software. Contact us for more information.
• Customized current (power) options with 3 in 1 Dimming ( PWM, 1-10V, Resistance, Dim to 1%, 10%, OFF)
• Open/Short/Over-Voltage/Over Temp protection.
• Universal input voltage 120-277 VAC
• Applicable for dry and damp locations.

Notes: Please provide the desired output current in the notes while placing the order. The desired output current should be in the rated range of the driver
