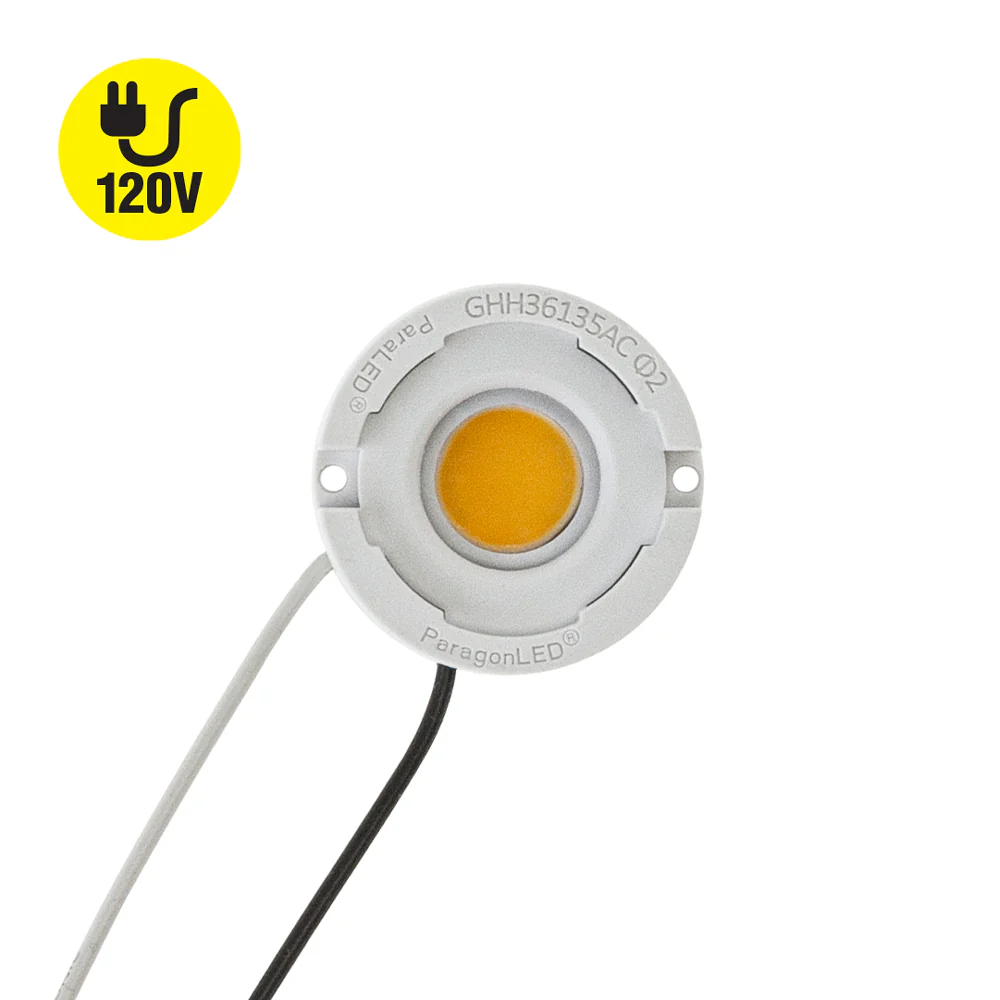

Model No	CBHT-042-30135-120V-40-G03
COB Holder Model No	GHH36135AC
LED Type	COB LED
No LED chips	42
Wattage	6W
Voltage	120 VAC
Power Factor	PF>0.98
Luminous Intensity	560 lumens
Color Temperature	4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>90
IP Rating	IP20 (Indoor rated)
COB Holder Dimensions	∅36mm (1.4 in) x H11.60mm (0.45 in)
COB Module Outer Diameter	∅27 mm (1.06 in)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

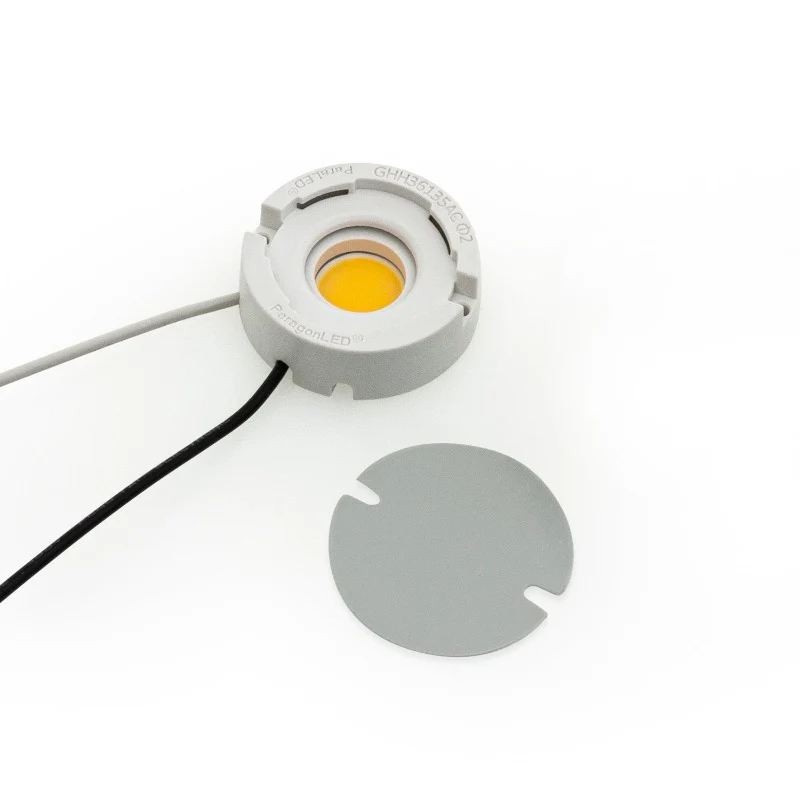

Included Content	COB Module, COB LED Array Holder, Thermal Pad
Certifications

Features:

• Low power consumption and high energy efficiency.
• Suitable for damp locations.
• Requires an aluminum heat sink to prevent overheating, which can cause serious luminous decay.
• COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
• It is important to ground light fixtures while designing lamps.
• This product includes a polycarbonate diffuser that can be easily attached or detached. The diffuser not only protects the module but also helps reduce glare and refract light in a wider beam.
• COB LEDs are commonly used in almost every kind of luminaire.
• The COB holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink.
• The silicone grease thermal pad provides a heat sink and aids in better heat dissipation, thereby increasing the lifespan of the module.
