9 inch Linear LED Module Driverless Engine LIN 09-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

9 inch Linear LED Module Driverless Engine LIN 09-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)

9 inch Linear LED Module Driverless Engine LIN 09-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)

Ā  Ā  Ā

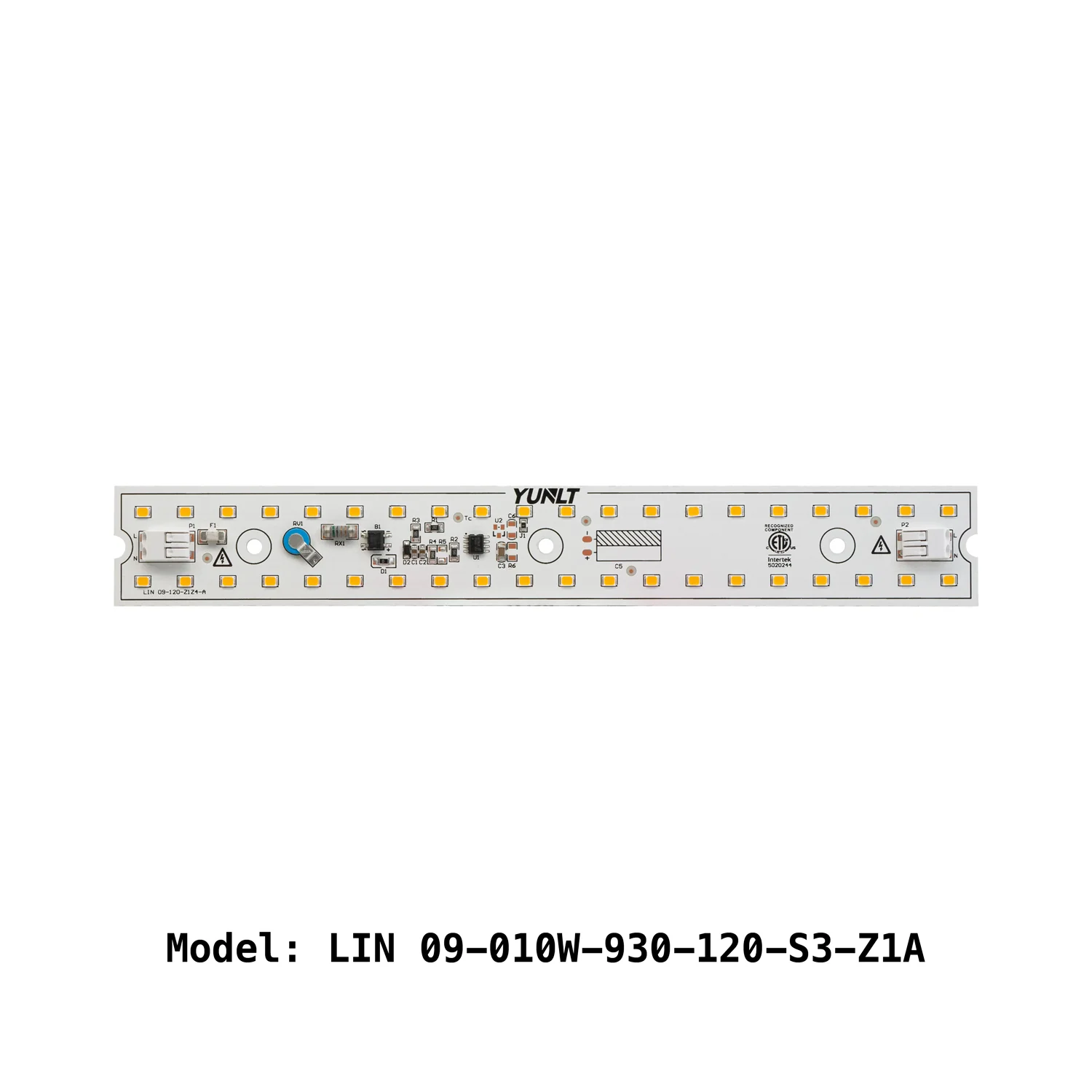

Model No LIN 09-010W-930-120-S3-Z1A
No of LEDs 40
Wattage 10W
Voltage 120V AC
Luminous Flux 900 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package ComponentsĀ  LED Module

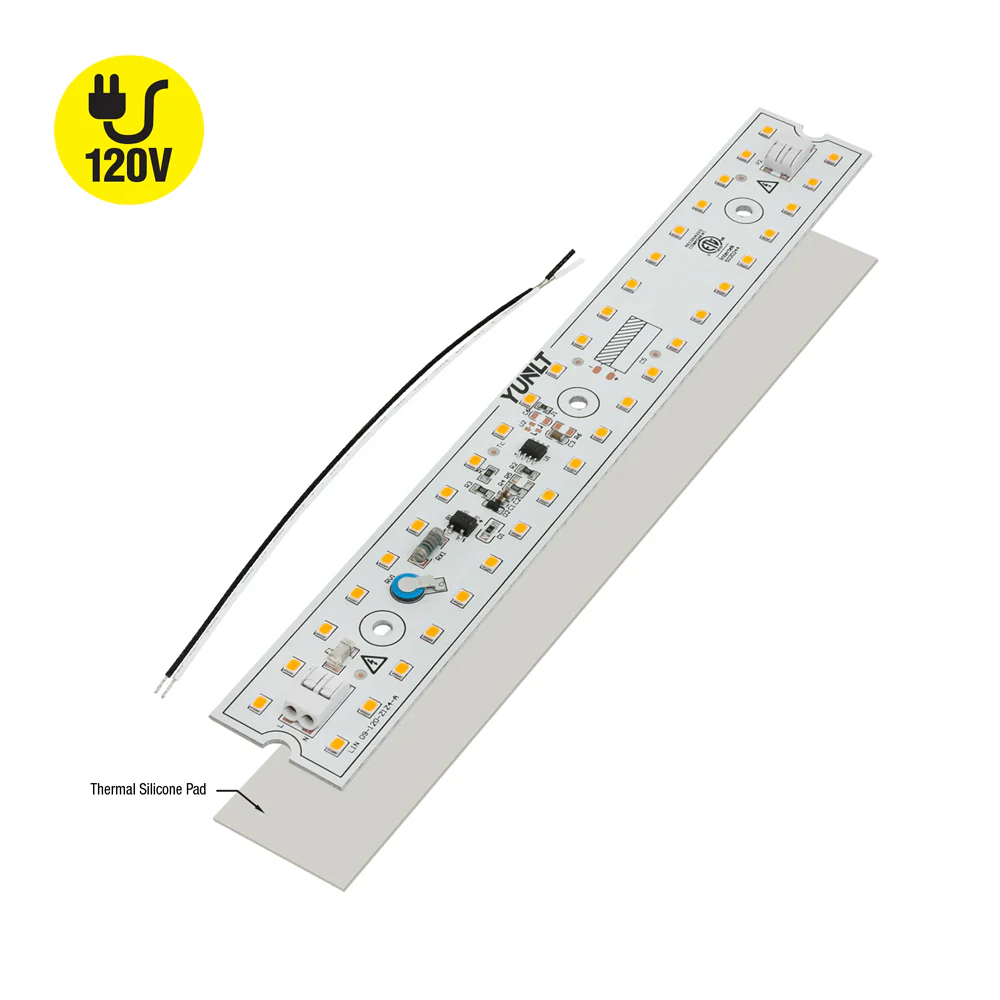

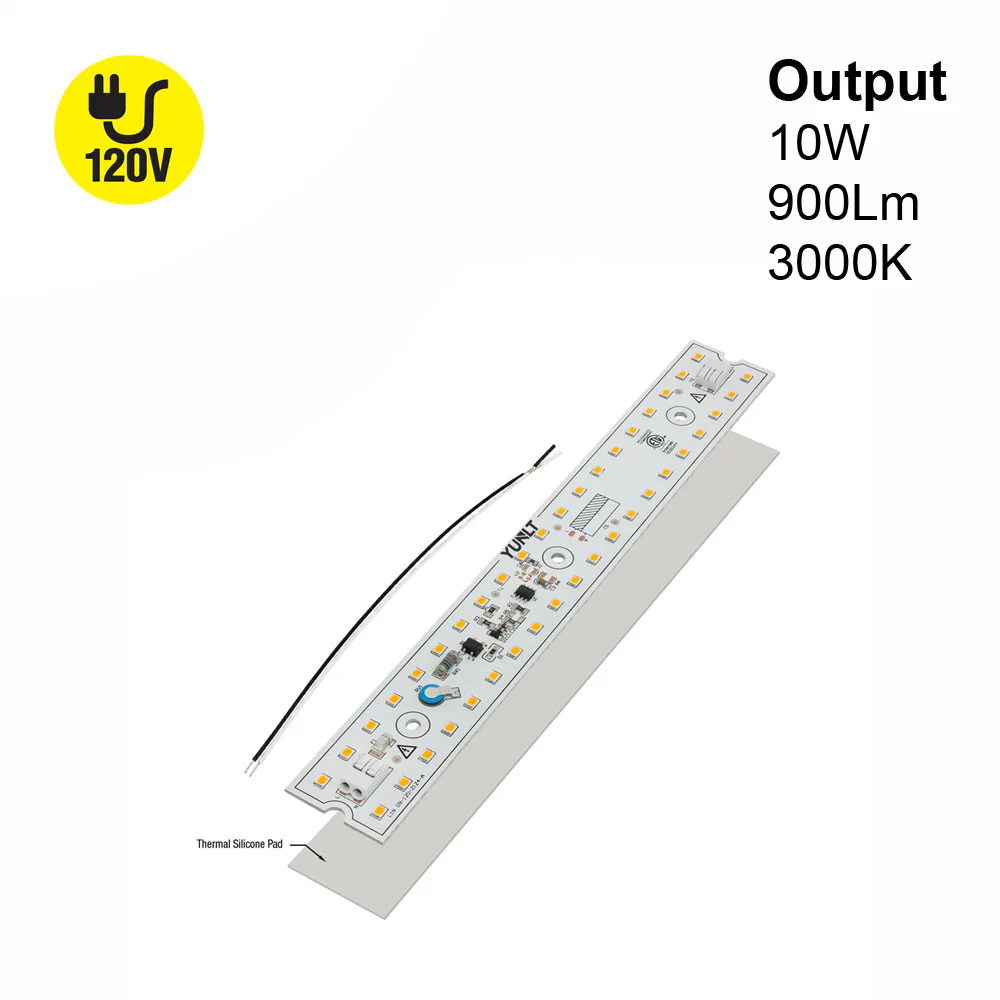

Thermal Silicon Pad
6inch Black and White power feed
Dimensions 228.5mm (9 inch) x 32.0 mm (1.25 inch)
Diameter of the screw hole 3.5mm (0.13 in)
Height 6mm (0.23in)
Certification Ā


Features

  • A premier quality light engine. It produces up to 900 lumens of exceptional light.
  • Low power consumption, high energy efficiency.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • ApplyĀ ThermalĀ Silicon PadĀ evenly on the bottom of the light source and the contact surface of the heat sink when installation.
$25.70
9 inch Linear LED Module Driverless Engine LIN 09-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)ā€”
$25.70

Product Information

Shipping & Returns

Description

Ā  Ā  Ā

Model No LIN 09-010W-930-120-S3-Z1A
No of LEDs 40
Wattage 10W
Voltage 120V AC
Luminous Flux 900 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package ComponentsĀ  LED Module
Thermal Silicon Pad
6inch Black and White power feed
Dimensions 228.5mm (9 inch) x 32.0 mm (1.25 inch)
Diameter of the screw hole 3.5mm (0.13 in)
Height 6mm (0.23in)
Certification Ā


Features

  • A premier quality light engine. It produces up to 900 lumens of exceptional light.
  • Low power consumption, high energy efficiency.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • ApplyĀ ThermalĀ Silicon PadĀ evenly on the bottom of the light source and the contact surface of the heat sink when installation.
