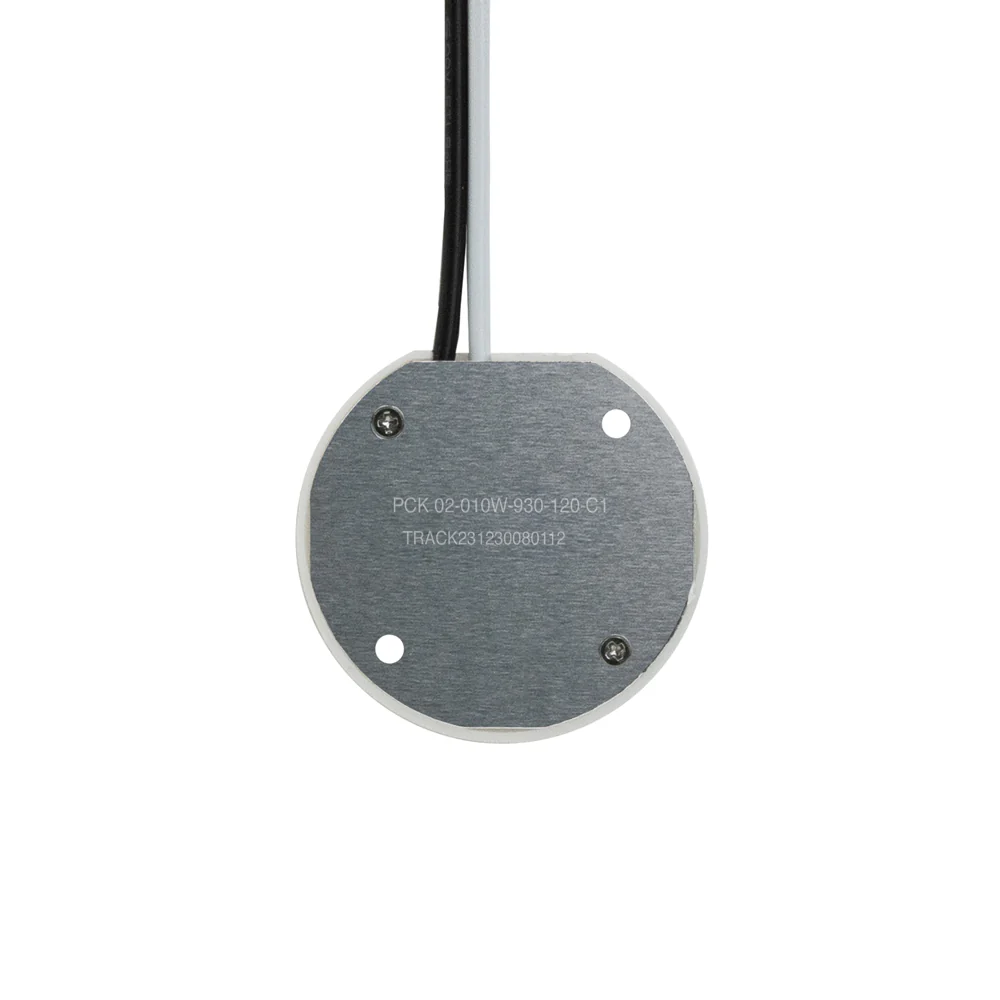

PCK 02-010-930-120-C1 YUNLT LED Module, 120V 10W 3000K(Warm White)
| Model No | PCK 02-010-930-120-C1 |
| Wattage | 10W |
| Voltage | 120V AC |
| Luminous Intensity | 800 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

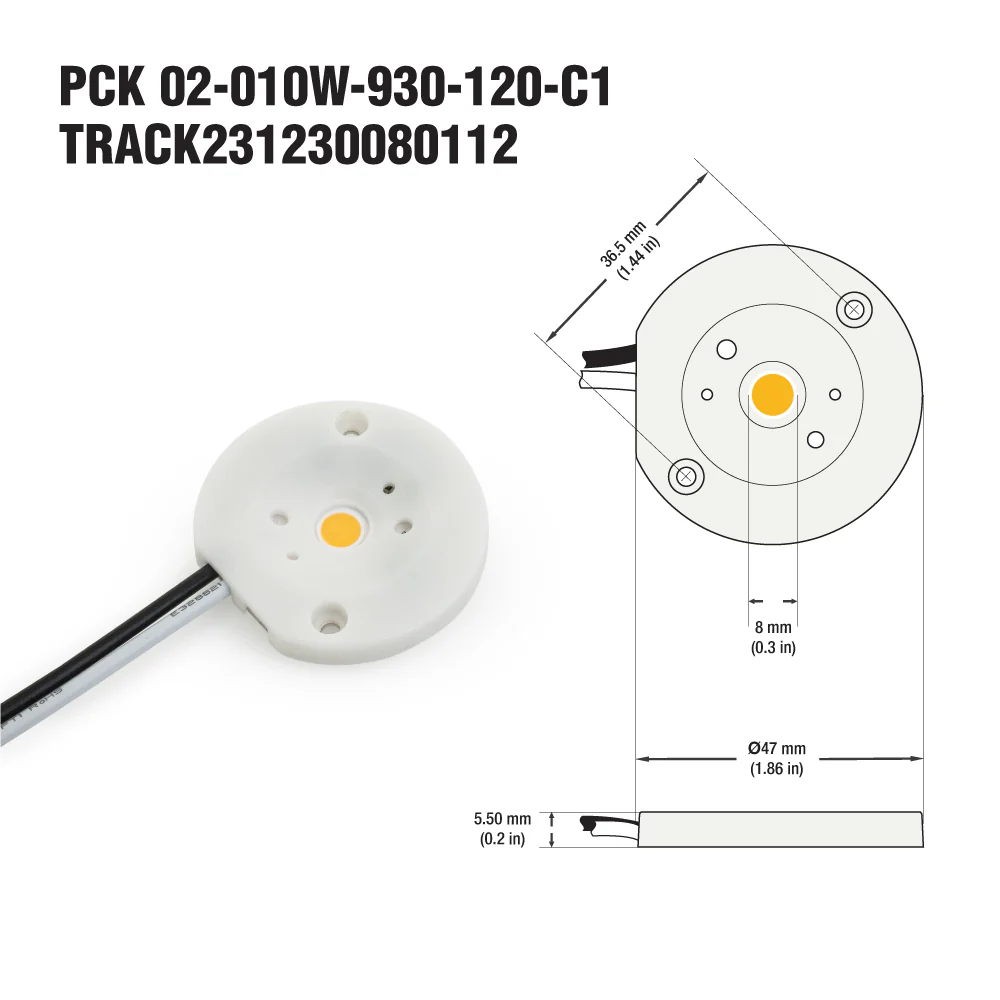

| COB Holder Dimensions | ā 47 x H5.5 mm (1.8 x 0.2 in) |
| COB ModuleĀ Outer Diameter | ā 8mm (0.3 in) |
| Wire Size | 30cm (11.8in) 18AWG |
| Operating Temperature | -60 ~ +105ā |
| Storage Temperature | -60 ~ +105ā |
| Assembly process Temperature | <300ā |
| Solder joint point | <105ā |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB Holder, Thermal Pad |
| Certifications |  |
Ā
Features:
- Operates on 120V DC with a power consumption of 10W
- Produces warm white light with color temperature of 3000K and CRI>90
- Dimmable and suitable for use in damp locations (IP20 rating)
- Requires aluminum heat sink to prevent overheating and luminous decay
- More energy-efficient and produces brighter and higher quality beam output than older LED technologies
- Suitable for use in almost every kind of luminaire
- Grounding light fixtures is essential for safe and efficient operation

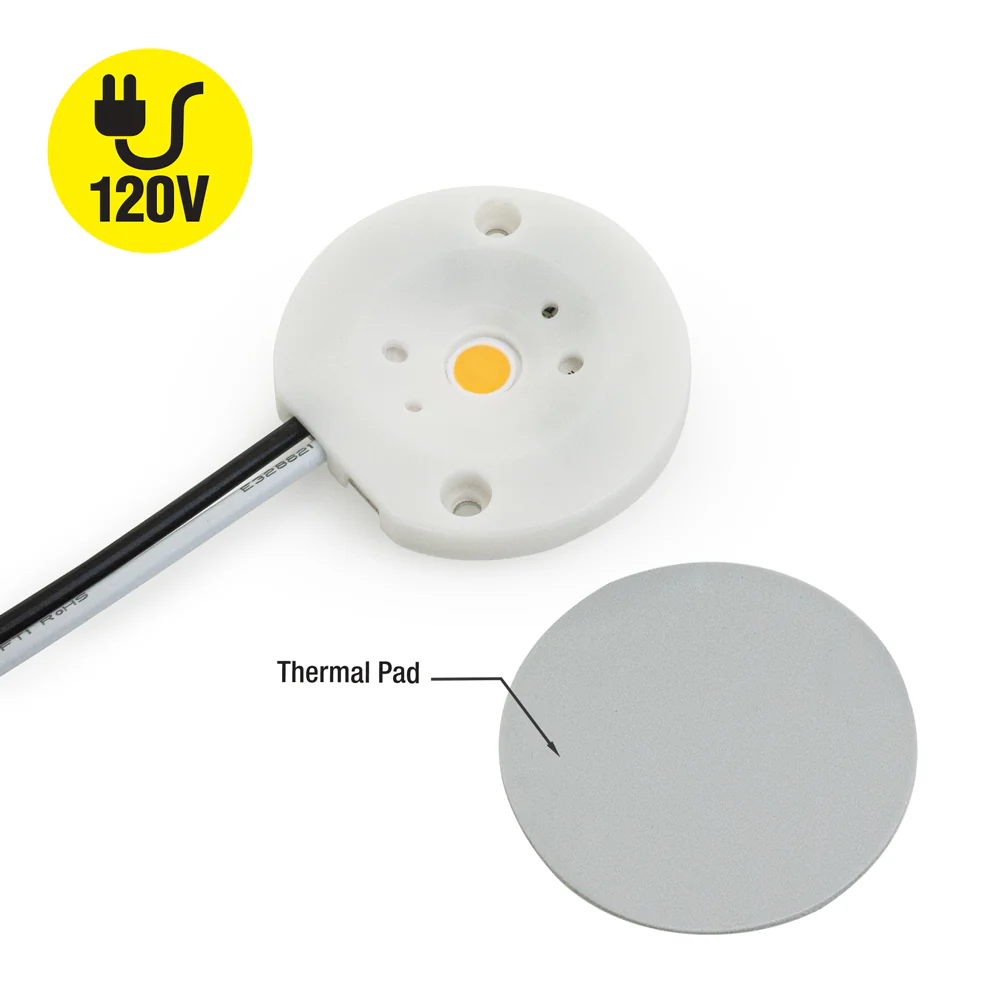

- Silicone grease thermal pad provides heat sink and better heat dissipation
- Operates at temperatures ranging from -60 ~ +105ā, and solder joint point should be kept below 105ā
