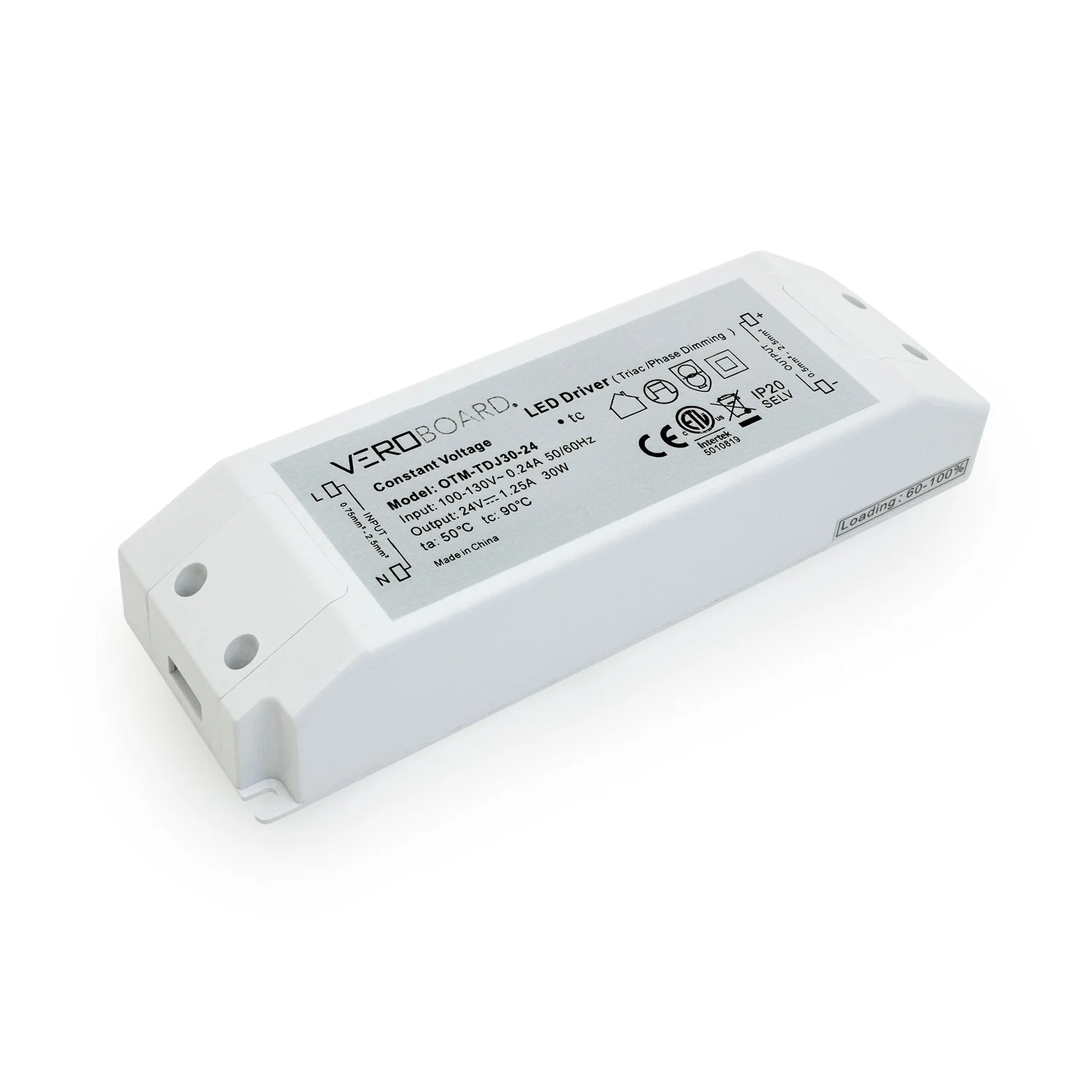

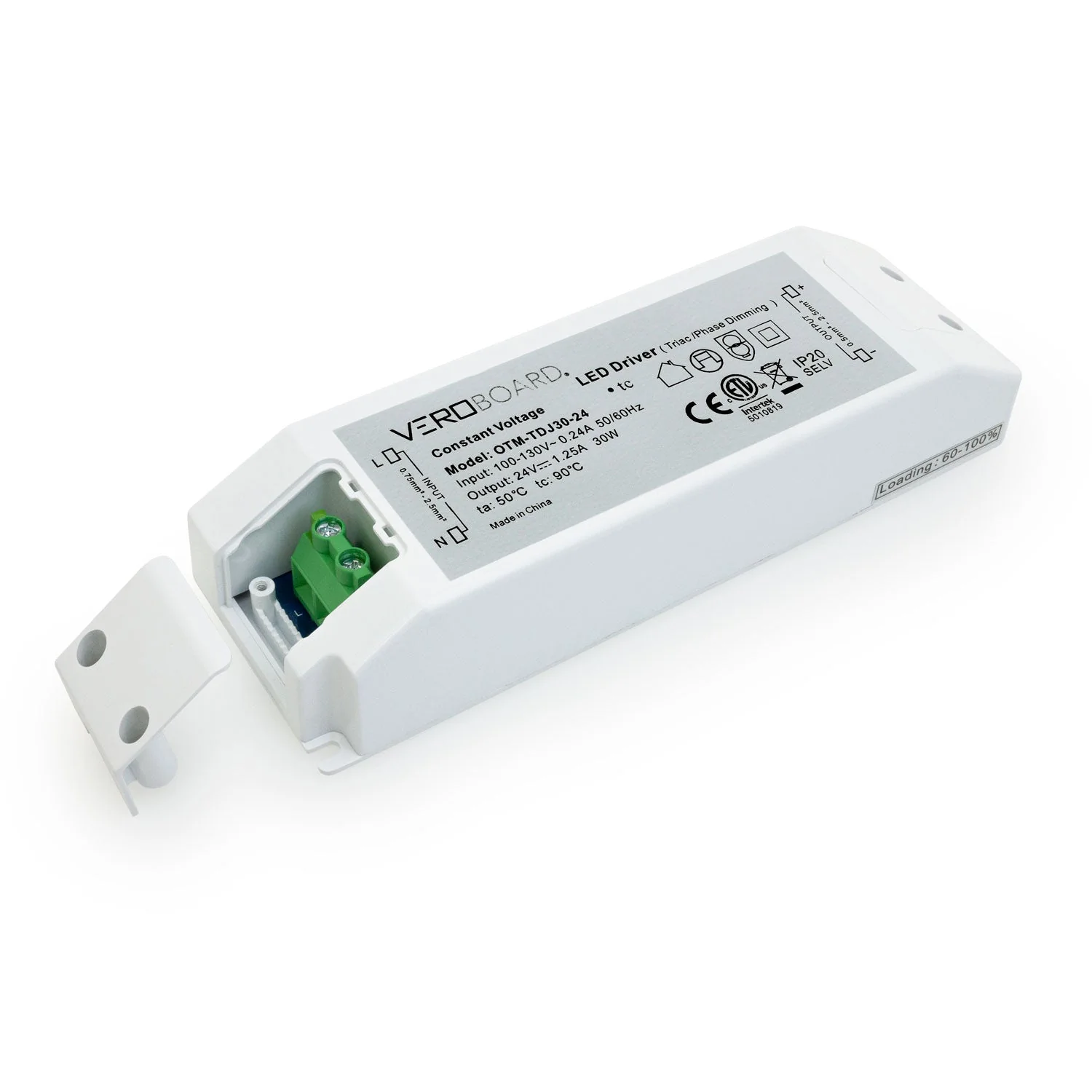

OTM-TDJ30-24 Constant Voltage Triac Dimming LED Driver, 24V 1.25A 30W
| Model | OTM-TDJ30-24 |
| Input Voltage | 100-130V AC |
| Input Current | 0.24A |
| Frequency | 50/60Hz |
| Output Voltage | 24V DC |
| Output regulated Current | 1.25A |
| Output Power | 30W |
| Dimmable | Yes (Triac/Phase dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 90°C |
| Class Certification | Class II/ SELV |
| Dimensions | 180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in) |
| Certification |

|
|
Compatible with Forward-Phase & Triac dimmers |
| Applicable for Dry and Damp locations |
| Short circuit and overload protected |
| Class II certified, Double-layer insulation |
Features:
- LED driver type: Triac Dimmable Constant Voltage
- Input voltage range: 100-130V AC
- Input current: 0.24A
- Frequency: 50/60Hz
- Output voltage: 24V DC
- Output regulated current: 1.25A
- Output power: 30W
- Dimming capability: Triac/Phase dimming
- IP rating: IP20 (suitable for indoor use only)
- Ambient Temperature (Ta) range: 50°C
- Case Temperature (Tc) range: up to 90°C
- Certification: Class II/ SELV
- Dimensions: 180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in)
- Certification authority: ETL
