Model	VBD-024-060VTSP
Input Voltage	100-277V AC
Input Current	0.9A
Frequency	50/60Hz
Power Factor	0.95
Output Voltage	24V DC
Output regulated Current	2.5A
Output Power	60W
Dimmable	Yes (Triac/Phase-cut Dimming)
Waterproof	No
IP Rating	IP20
Class Certification	Class 2/ Class P/ Type HL. Class II
Dimensions	300 x  30.88 x 18.58mm (11.81 x 1.21 x 0.73 in)
Certifications

Suitable for DRY and DAMP Locations

Compatible with Forward-Phase, MLV, ELV, & Triac dimmers



Features:

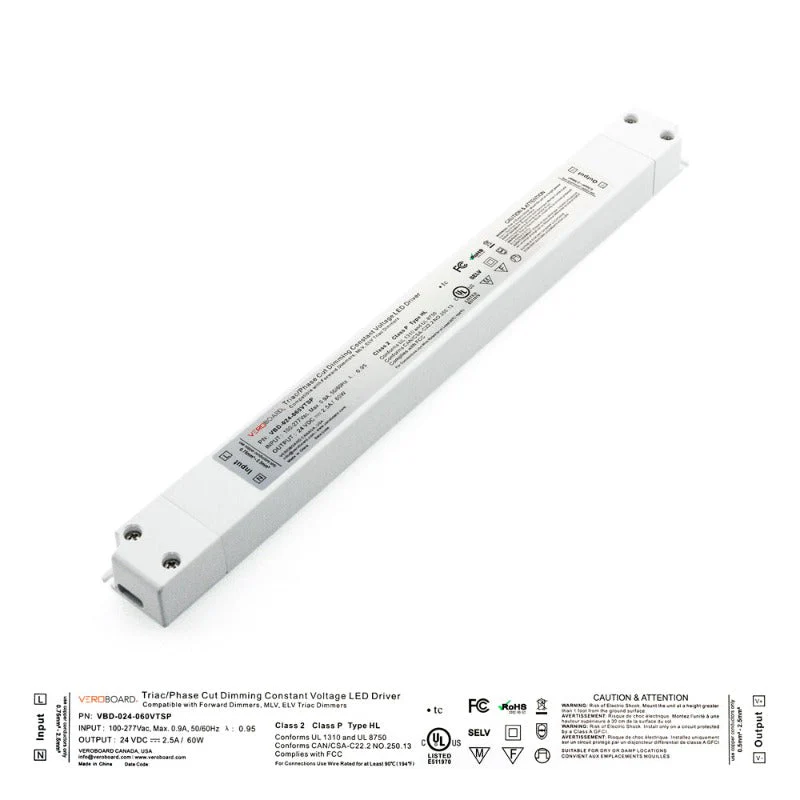

• The Super Slim VBD-024-060VTSP Triac Dimmable Constant Voltage LED Driver is a compact and efficient power supply designed for use with LED lighting systems.
• It has an input voltage range of 100-277V AC and input current of 0.9A, which makes it suitable for a wide range of power sources.
• The power factor of 0.95 indicates that it operates at high efficiency.
• The output voltage of the driver is 24V DC, and it can regulate an output current of up to 2.5A, making it suitable for a range of LED lighting applications.
• With a maximum output power of 60W, it can power multiple LED lights at once.
• The driver is dimmable, using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels as required.
• The driver has several class certifications, including Class 2, Class P, Type HL, and Class II, indicating that it is designed to meet specific safety and performance standards.
• The driver is not waterproof, with an IP rating of IP20, so it is suitable for indoor use only.
• The compact dimensions of 300 x 30.88 x 18.58mm (11.81 x 1.21 x 0.73 in) make it easy to install in a variety of locations.
• The driver is UL listed for safety and compliance, meaning that it has been tested and certified by Underwriters Laboratories, a global safety consulting and certification company, to ensure its reliability and performance.
