PUP40A-1WMC-1200 Constant Current Driver with Selectable Current, 120VAC-277VAC 850 to 1200mA

Model	PUP40A-1WMC-1200
Input Voltage	120VAC-277VAC
Input Current	0.6Amax@100VAC

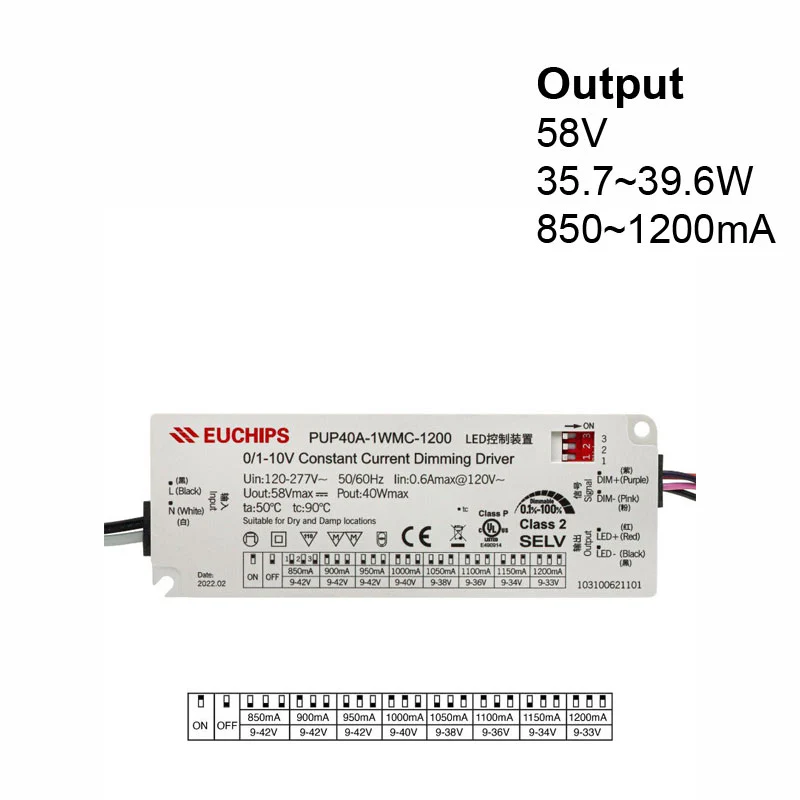

Output Current/Voltage/Power	850mA/9-42VDC/35.7W 900mA/9-42VDC/37.8W 950mA/9-42VDC/39.99W 1000mA/9-40VDC/40W 1050mA/9-38VDC/39.9W 1100mA/9-36VDC/39.6W 1150mA/9-34VDC/39.1W 1200mA/9-33VDC/39.6W
No-load Output Voltage	58V Max
Input Frequency	50/60Hz
Dimming Type	0/1-10V(Type A)
Dimming Range	0.1%-100% Dimming to off
IP Rating	IP20 (Dry and Damp Locations)
Efficiency	>87%@120VAC, Full load
Working Temperature	-20℃~50℃
Lifetime	50,000h @ Tc:85℃

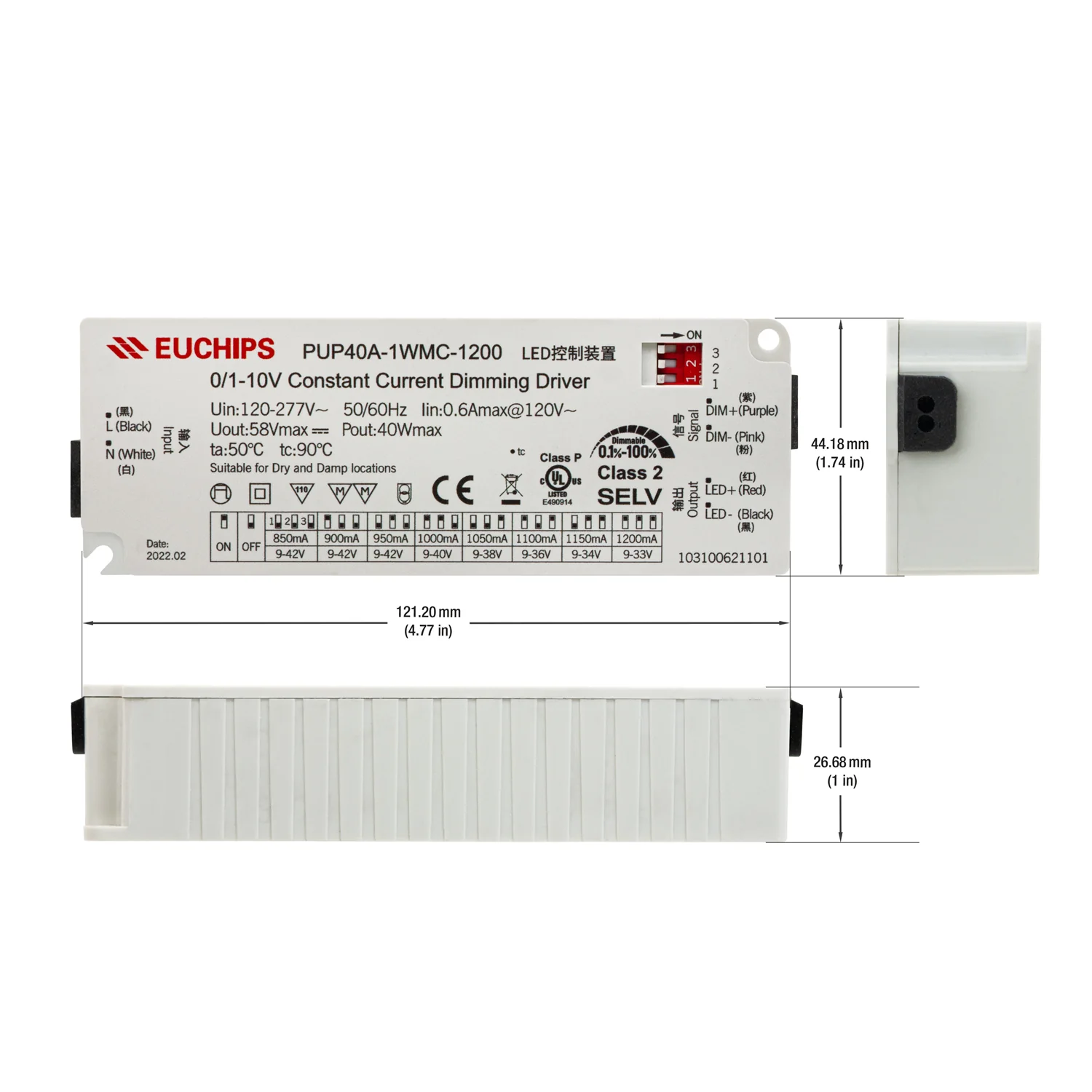

Dimensions	121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in)
Certifications

Features:

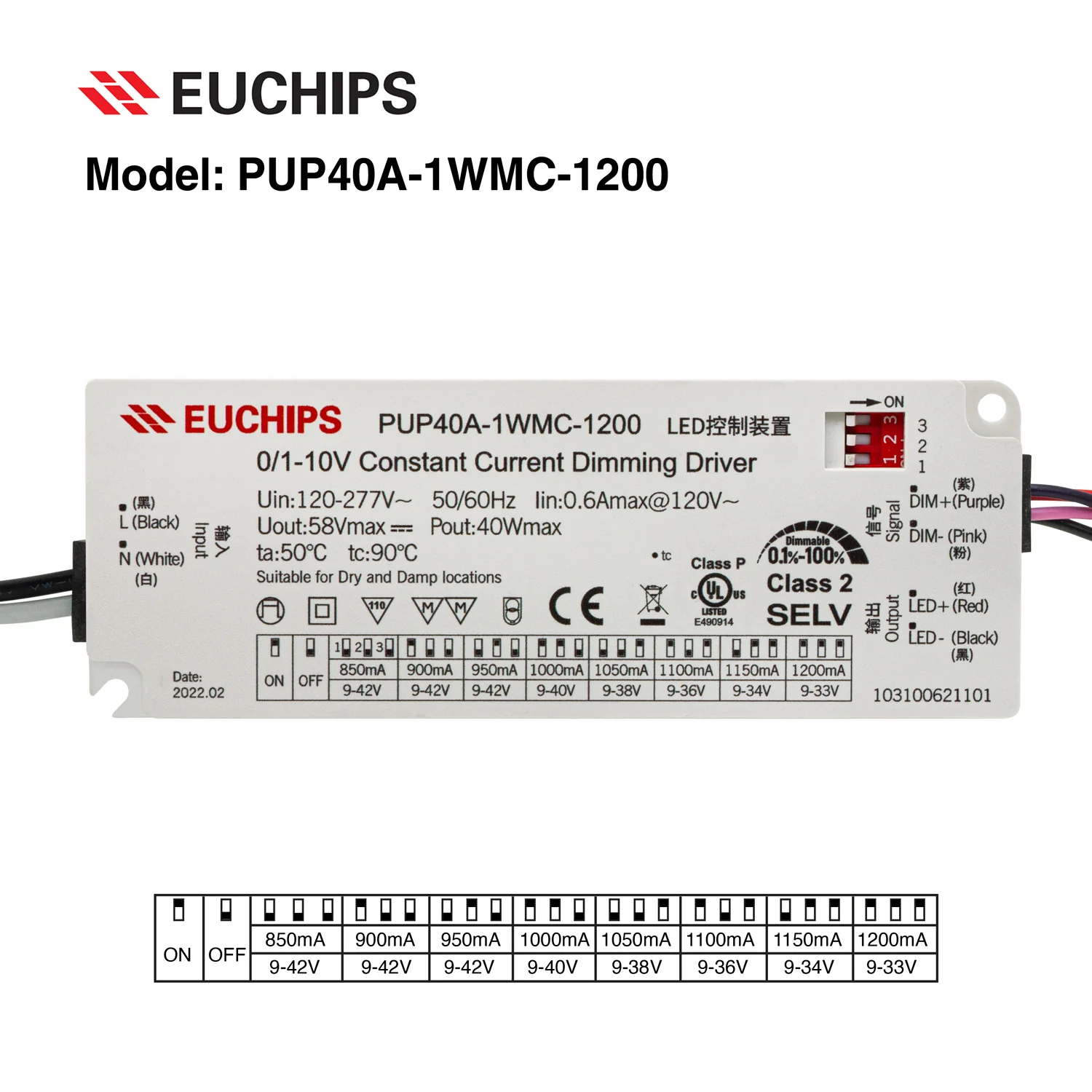

Single channel output, output current level selectable by DIP S.W.
Support 3-in-1 dimming mode: 0/1-10V active signal, adjustable resistance, PWM(A model)
Input voltage of 100VAC ~ 240VAC
Dimming range: 0.1-100%，Dimming effect smooth, no flicker
Protections: Short circuit, Over load, Over voltage
Suitable for indoor LED lighting application

Product Information

Shipping & Returns

PUP40A-1WMC-1200 Constant Current Driver with Selectable Current, 120VAC-277VAC 850 to 1200mA

Model	PUP40A-1WMC-1200
Input Voltage	120VAC-277VAC
Input Current	0.6Amax@100VAC
Output Current/Voltage/Power	850mA/9-42VDC/35.7W 900mA/9-42VDC/37.8W 950mA/9-42VDC/39.99W 1000mA/9-40VDC/40W 1050mA/9-38VDC/39.9W 1100mA/9-36VDC/39.6W 1150mA/9-34VDC/39.1W 1200mA/9-33VDC/39.6W
No-load Output Voltage	58V Max
Input Frequency	50/60Hz
Dimming Type	0/1-10V(Type A)
Dimming Range	0.1%-100% Dimming to off
IP Rating	IP20 (Dry and Damp Locations)
Efficiency	>87%@120VAC, Full load
Working Temperature	-20℃~50℃
Lifetime	50,000h @ Tc:85℃
Dimensions	121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in)
Certifications

Features:

Single channel output, output current level selectable by DIP S.W.
Support 3-in-1 dimming mode: 0/1-10V active signal, adjustable resistance, PWM(A model)
Input voltage of 100VAC ~ 240VAC
Dimming range: 0.1-100%，Dimming effect smooth, no flicker
Protections: Short circuit, Over load, Over voltage
Suitable for indoor LED lighting application

$19.38

Original: $64.61

-70%

PUP40A-1WMC-1200 Constant Current Driver with Selectable Current, 120VAC-277VAC 850 to 1200mA—

$64.61

$19.38

Original: $64.61

-70%

PUP40A-1WMC-1200 Constant Current Driver with Selectable Current, 120VAC-277VAC 850 to 1200mA—

$64.61

$19.38

Product Information

Shipping & Returns

Description

Model	PUP40A-1WMC-1200
Input Voltage	120VAC-277VAC
Input Current	0.6Amax@100VAC
Output Current/Voltage/Power	850mA/9-42VDC/35.7W 900mA/9-42VDC/37.8W 950mA/9-42VDC/39.99W 1000mA/9-40VDC/40W 1050mA/9-38VDC/39.9W 1100mA/9-36VDC/39.6W 1150mA/9-34VDC/39.1W 1200mA/9-33VDC/39.6W
No-load Output Voltage	58V Max
Input Frequency	50/60Hz
Dimming Type	0/1-10V(Type A)
Dimming Range	0.1%-100% Dimming to off
IP Rating	IP20 (Dry and Damp Locations)
Efficiency	>87%@120VAC, Full load
Working Temperature	-20℃~50℃
Lifetime	50,000h @ Tc:85℃
Dimensions	121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in)
Certifications

Features:

Single channel output, output current level selectable by DIP S.W.
Support 3-in-1 dimming mode: 0/1-10V active signal, adjustable resistance, PWM(A model)
Input voltage of 100VAC ~ 240VAC
Dimming range: 0.1-100%，Dimming effect smooth, no flicker
Protections: Short circuit, Over load, Over voltage
Suitable for indoor LED lighting application
