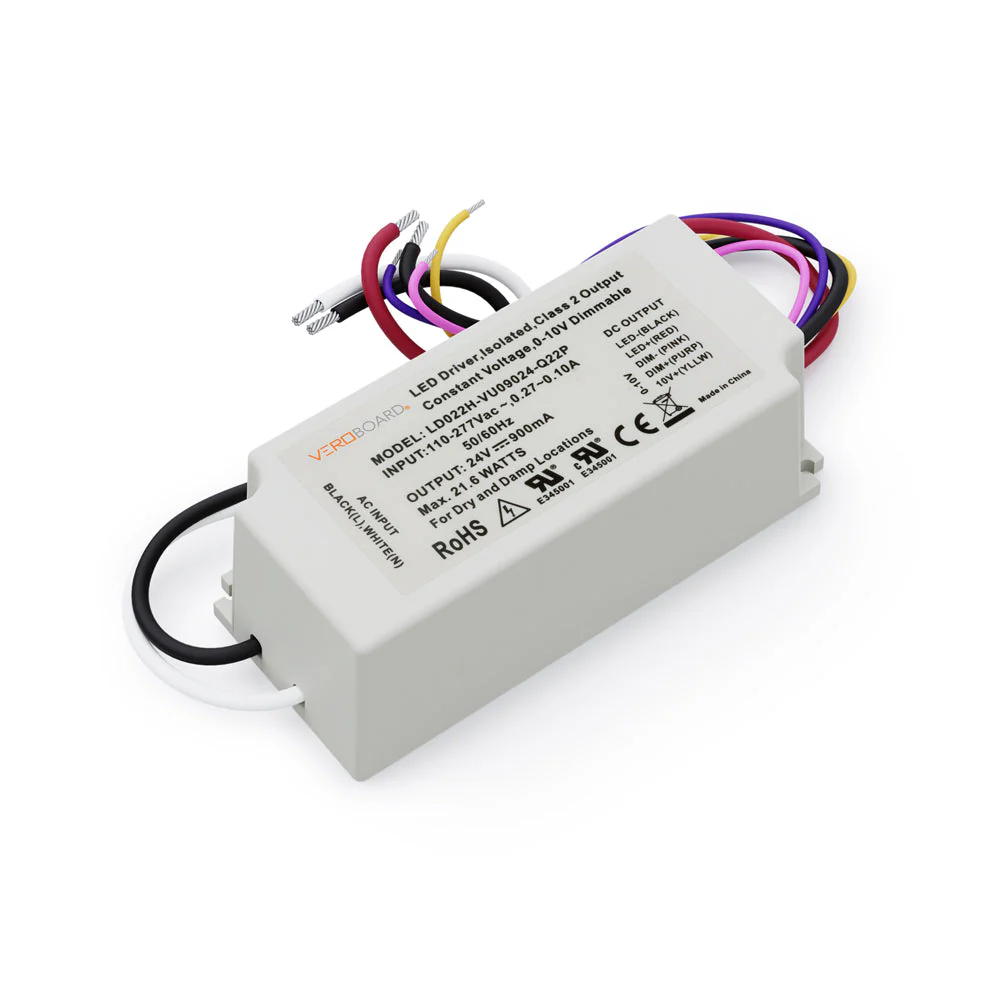

Model	LD022H-VU09024-Q22P
Input Voltage	110-277V AC
Input Current	0.27~0.10A
Frequency	50/60 Hz

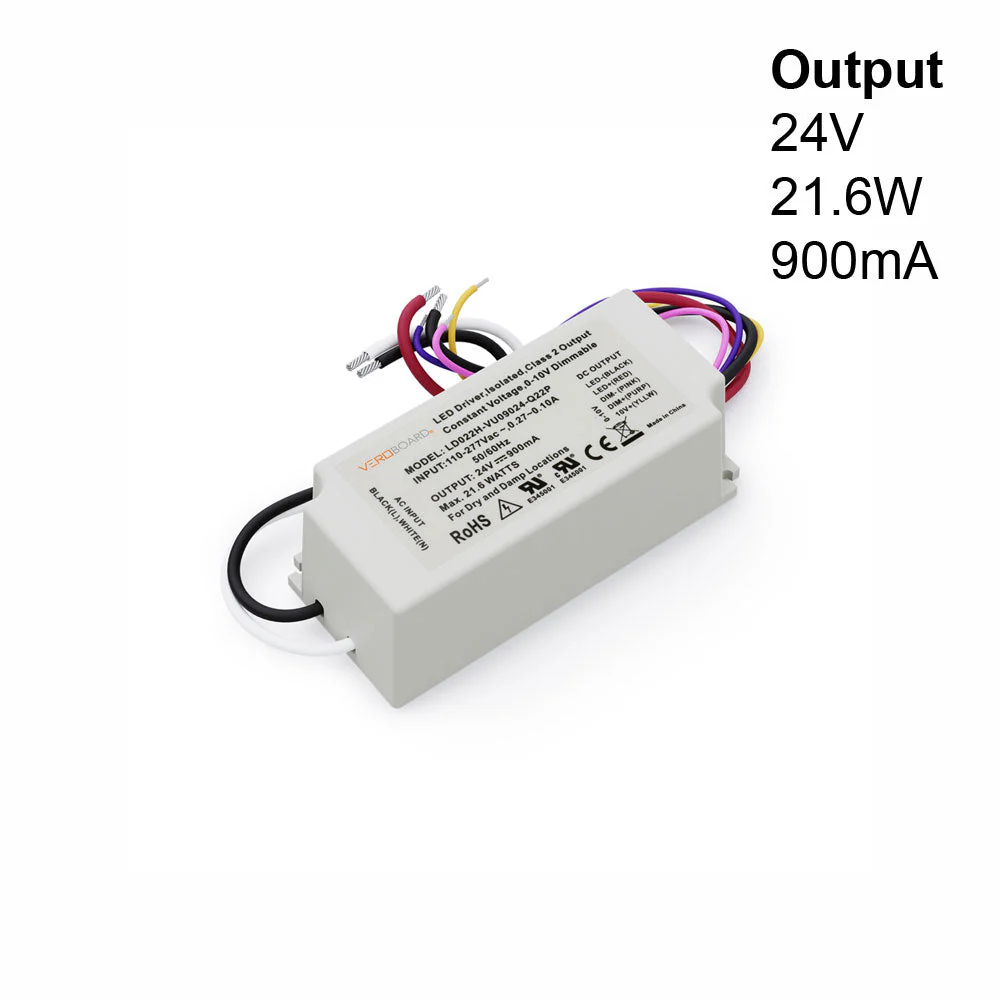

Output voltage	24V DC
Output regulated current	900mA
Output Power	21.6W
Dimmable	Yes (0/10V Dimming)
Class Certification	Class 2
IP Rating	IP20 (Indoor Rated)
Dimensions	88.4 x 41.5 x 30.6mm (3.4 x 1.6 x 1.2in)
Certifications



Features:

• Operates with an input voltage range of 110-277V AC and supports a frequency of 50-60 Hz.
• Draws an input current between 0.27A and 0.10A.
• Provides a stable output voltage of 24V DC, ideal for LED lighting systems.
• Delivers a power output of 21.6W.
• Supplies a consistent output current of 900mA.
• Features 0-10V dimming functionality for adjustable brightness levels.
• Rated IP20, making it suitable for dry and damp indoor locations.
• Compatible with any standard 0-10V dimming switches for flexible lighting control.
