Model	SMT-024-060VTSP
Input Voltage	100-277V AC
Frequency	47-63Hz
Output Voltage	24V DC
Output regulated Current	2.5A
Output Power	60W
Dimmable	Yes
IP Rating	IP20
Class Certifications	Class 2/ Class II
Dimensions	300 x 20 x 30mm (11.8 x 0.78 x 1.1 in)
Certifications

Applicable for dry and damp locations



Features:

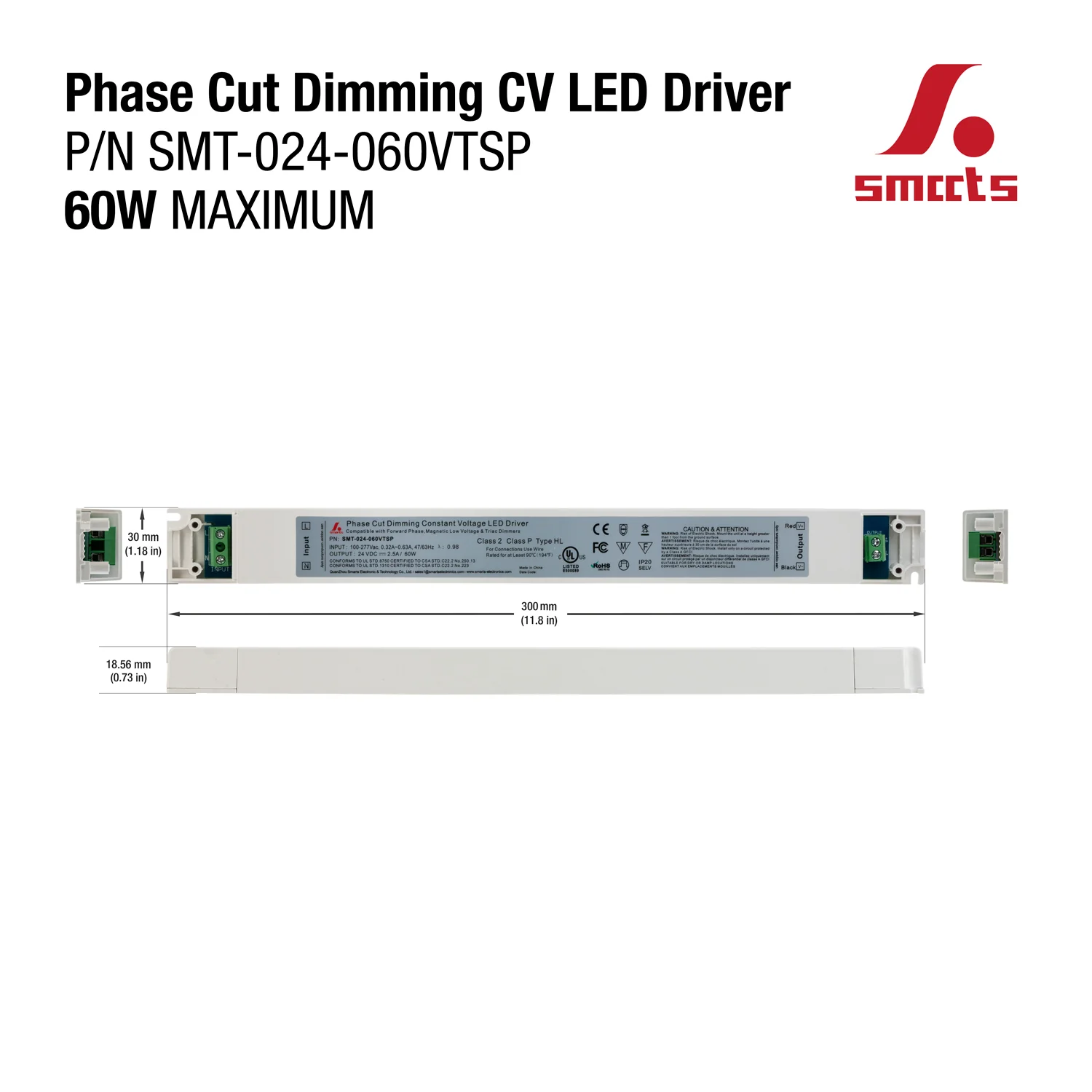

• The Smart Super Slim SMT-024-060VTSP is a dimmable LED driver designed for 24V LED lighting systems.
• It operates with an input voltage range of 100-277V AC, making it compatible with a wide range of electrical systems.
• The driver has a frequency range of 47-63Hz, ensuring stable and consistent power supply for LED lighting applications.
• It delivers an output voltage of 24V DC and a regulated current of 2.5A, providing a total output power of 60W, suitable for powering various LED fixtures.
• The driver features dimmable capabilities, allowing for adjustable lighting intensity and creating the desired ambiance.
• It has an IP20 rating, indicating its protection against solid objects larger than 12.5mm and providing resistance against dust.
• The driver is classified as Class 2/Class II, ensuring compliance with safety standards for low-voltage power sources.
• In terms of dimensions, the driver measures 300 x 20 x 30mm (11.8 x 0.78 x 1.1 inches), offering a super slim and compact design for easy installation and integration into lighting systems.
• The Smart Super Slim SMT-024-060VTSP LED driver is certified for its quality and safety.
• It is applicable for dry and damp locations, providing flexibility for installation in various indoor environments.
