Model	UL-1020-0500-A
Operating Voltage	24V DC
Light Source	1 x 5W
Total Power Consumption	5W
Color Temperature	3000K (Warm White)
Bulb Type	Integrated COB LED
Housing Material	Die-cast Aluminum body
Cap Color Finish	Stainless Steel
Optics	Primary optics (Fresnel lens)

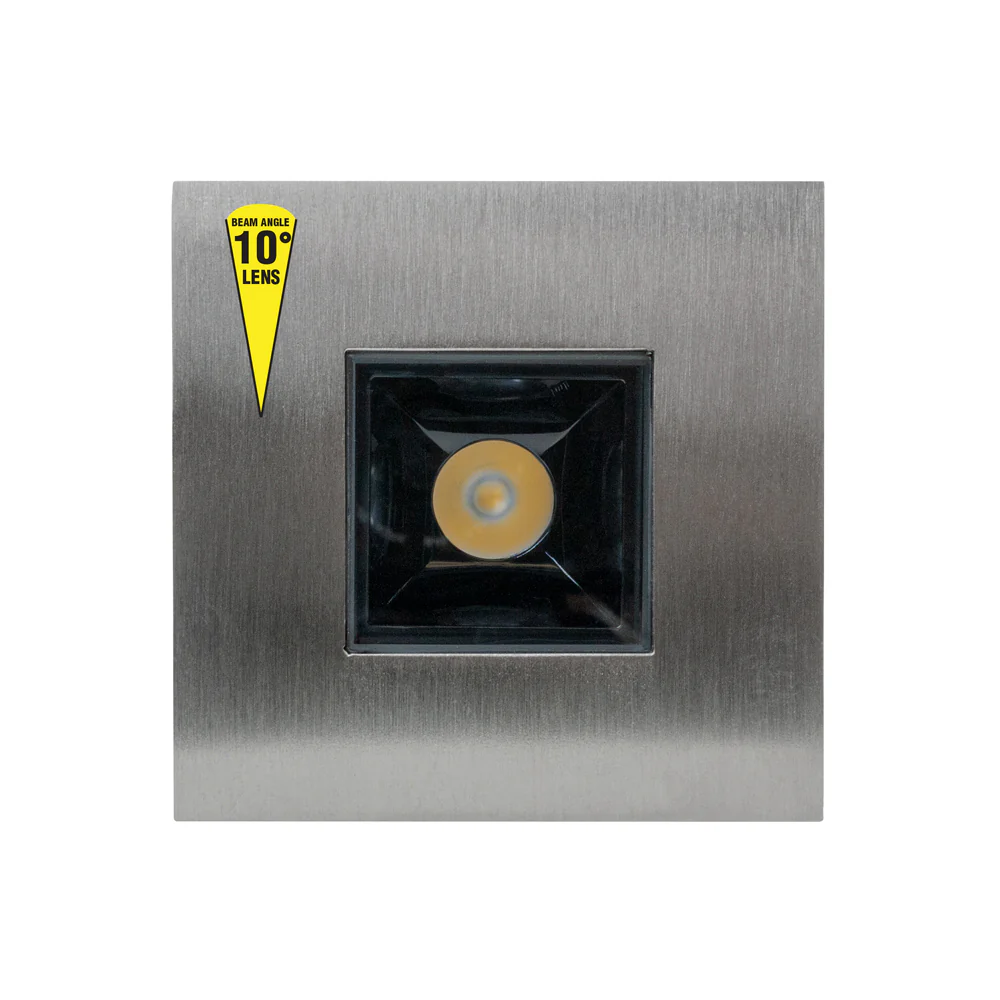

Beam Angle	10° lens
IP Rating	IP67
Dimmable	Yes
Cut Size	Ø57.73mm (2.27in)
Cable Size	Length: 1m (3.2ft) Ø7.5mm (0.29in) 18AWG
Dimensions with Housing	Side – 65 mm (2.5 inches) Height – 100 mm (3.95 inches) Base Diameter – 61 mm (2.4 inches)
Dimensions without Housing	Side –  65 mm (2.5 inches) Height – 62mm (2.4 inches)
Certification



Features:

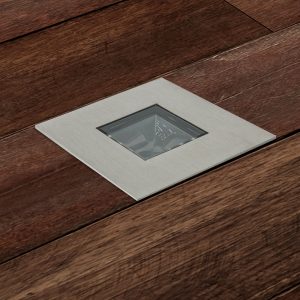

• This up-light inground fixture seamlessly integrates into a wide variety of outdoor applications, making it versatile and suitable for various lighting projects.
• It creates a unique ambiance and offers functional illumination, making it ideal for illuminating walkways, garden areas, and other desired outdoor spaces.
• The fixture provides maximum flexibility in power options, allowing for the use of single or multiple LED Light transformers, both in dimmable and non-dimmable variants.

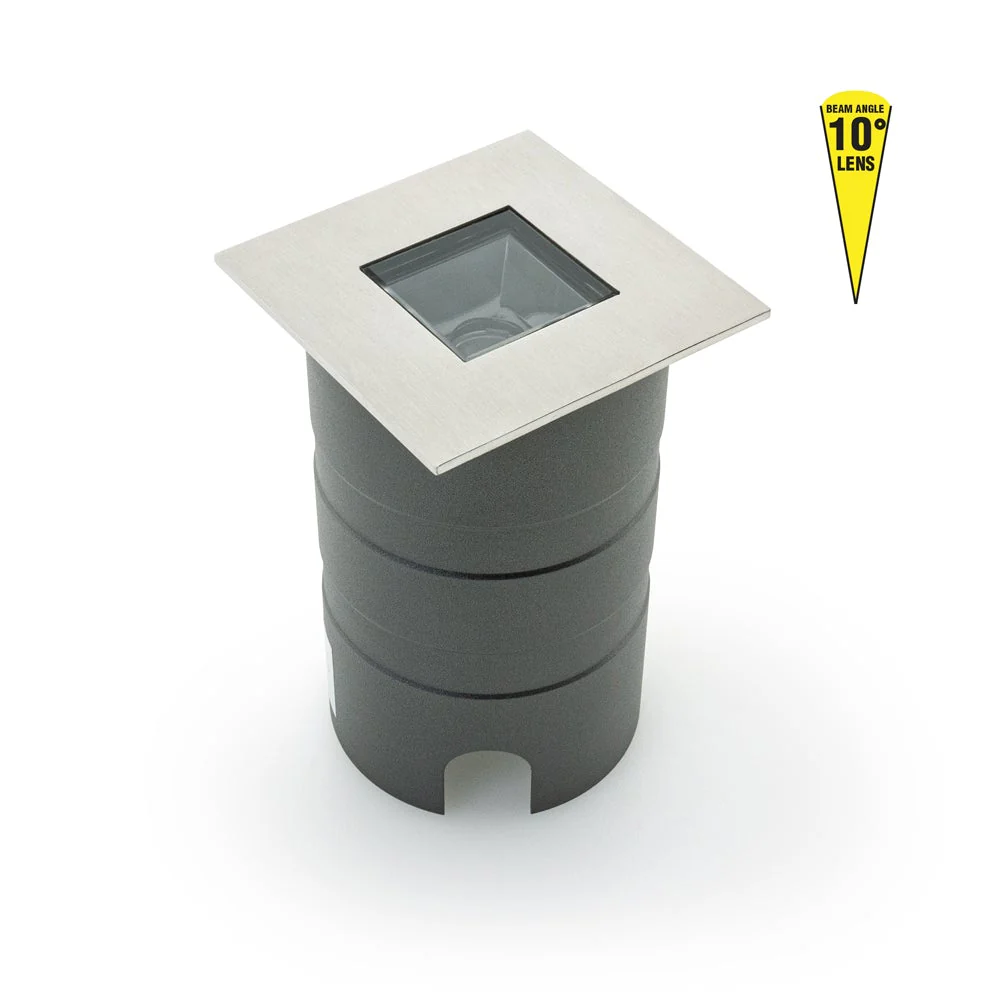

• It comes with a housing, and the installation using the housing is optional, providing flexibility in the installation process based on your specific requirements.
• These recessed lights have an aesthetic appeal and are popularly installed as LED pathway lights, pool deck lights, and patio lights, enhancing the visual appeal of outdoor environments.
• The IP67 rating ensures that the lights remain lit in all types of weather conditions and are resilient to being stepped upon, guaranteeing their durability and performance.
