Model	UL-1020-0500-A
Operating Voltage	24V DC
Light Source	1 x 5W
Total Power Consumption	5W
Color Temperature	3000K (Warm White)
Brightness	400-500 Lumens
Bulb Type	Integrated COB LED

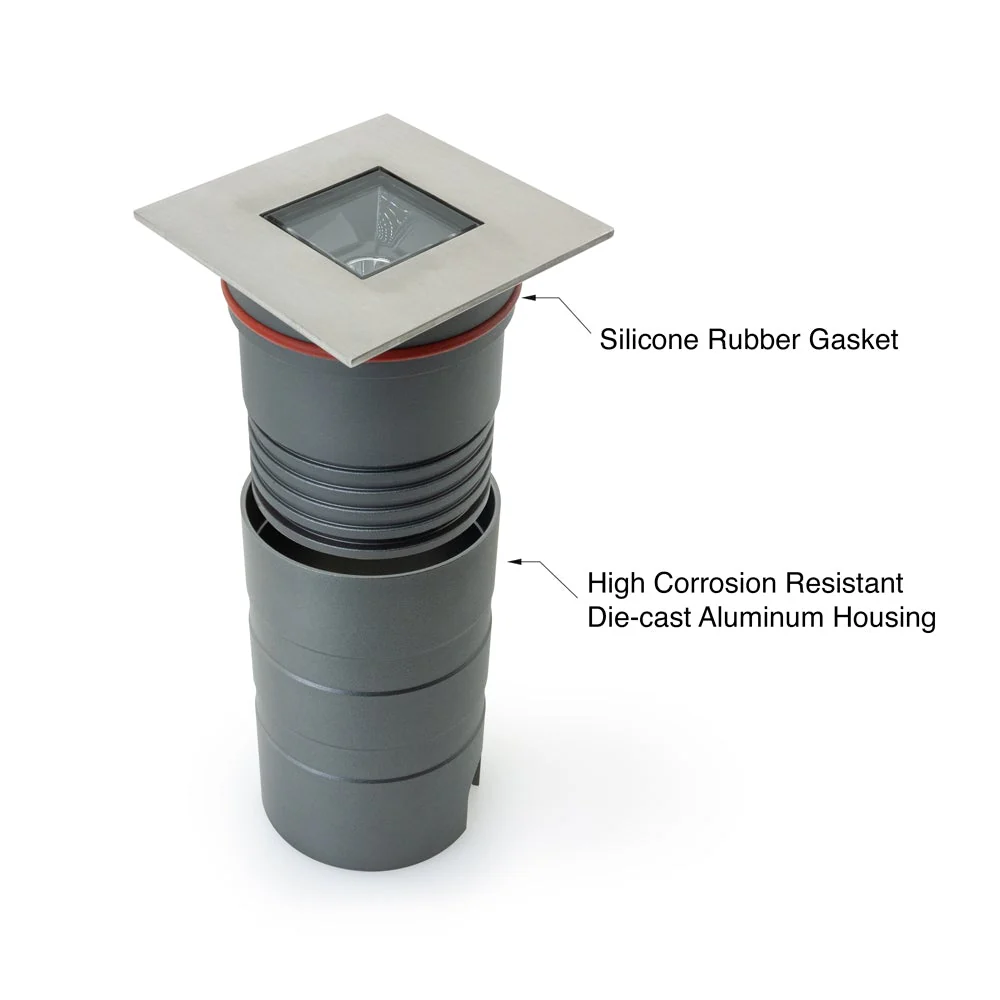

Housing Material	Die-cast Aluminum body
Cap Color Finish	Stainless Steel
Optics	Secondary optics (Reflector)

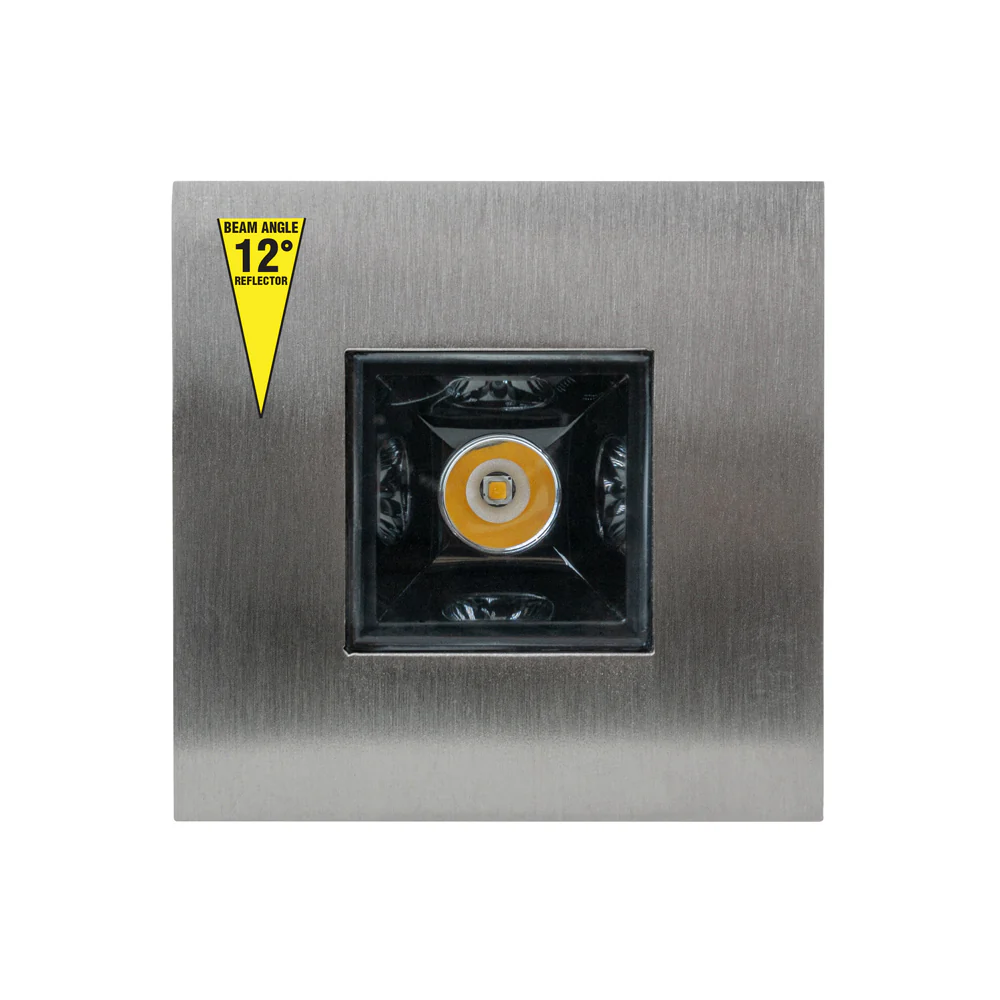

Beam Angle	12° Reflector
IP Rating	IP67
IK Rating	IK06
Dimmable	Yes
Cut Size	Ø57.73mm (2.27in)
Cable Size	Length: 1m (3.2ft) Ø7.5mm (0.29in) 18AWG
Dimensions with Housing	Side – 65 mm (2.5 inches) Height – 100 mm (3.95 inches) Base Diameter – 61 mm (2.4 inches)
Dimensions without Housing	Side –  65 mm (2.5 inches) Height – 61mm (2.4 inches)
Certification



Features:

• This up-light inground fixture seamlessly integrates into a wide variety of outdoor applications, making it suitable for various lighting needs.
• It creates a unique ambiance and offers functional illumination, making it perfect for enhancing walkways, garden areas, and other desired outdoor spaces.
• The fixture provides maximum flexibility in power options, allowing for the use of single or multiple LED Light transformers, both in dimmable and non-dimmable variants, to meet specific requirements.
• It comes with a housing, and the installation using the housing is optional, providing convenience and adaptability in the installation process.
• These recessed lights have an aesthetic appeal and are commonly installed as LED pathway lights, pool deck lights, and patio lights, adding beauty and functionality to outdoor environments.
• The IP67 rating ensures that the lights stay lit in all types of weather conditions and are resilient to being stepped upon, ensuring their durability and performance.
