Model	UL-1020-0500-A
Operating Voltage	24V DC
Light Source	1 x 5W
Total Power Consumption	5W
Color Temperature	3000K (Warm White)
Brightness	400-500 Lumens
Bulb Type	Integrated COB LED

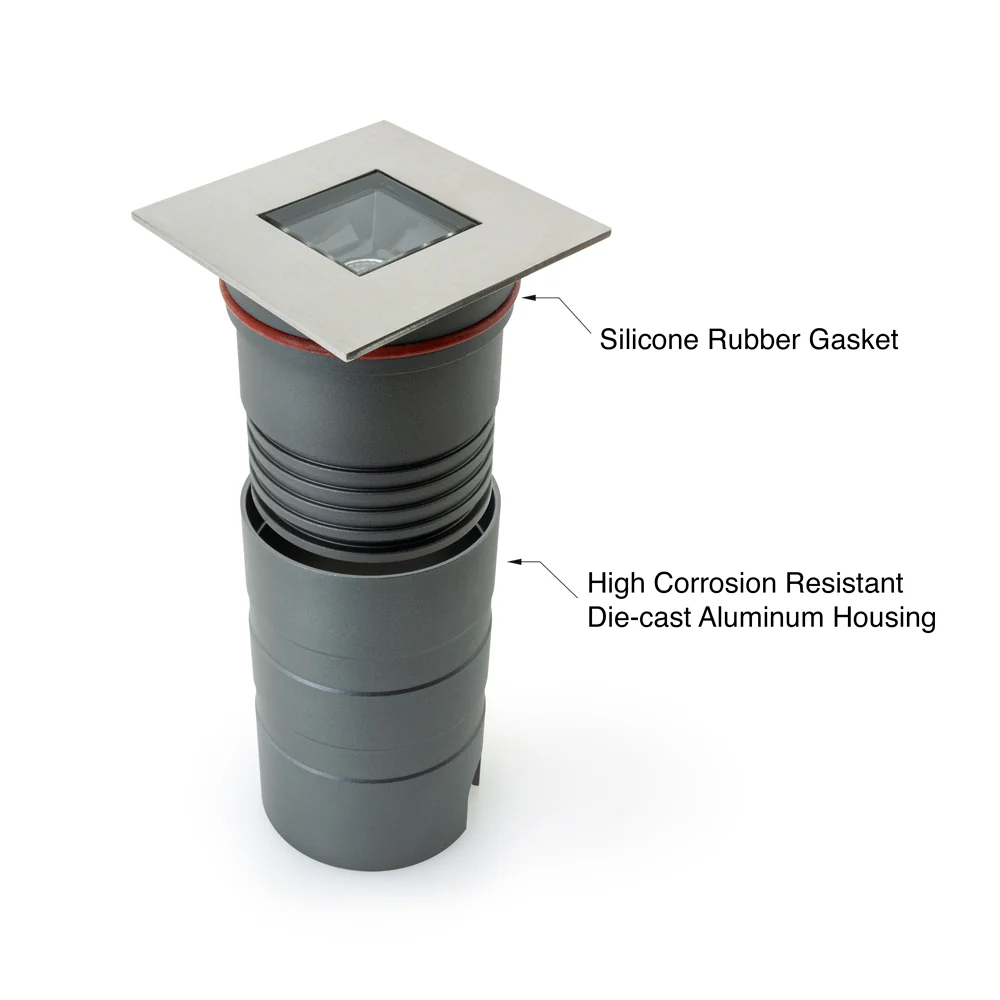

Housing Material	Die-cast Aluminum body
Material	Stainless Steel

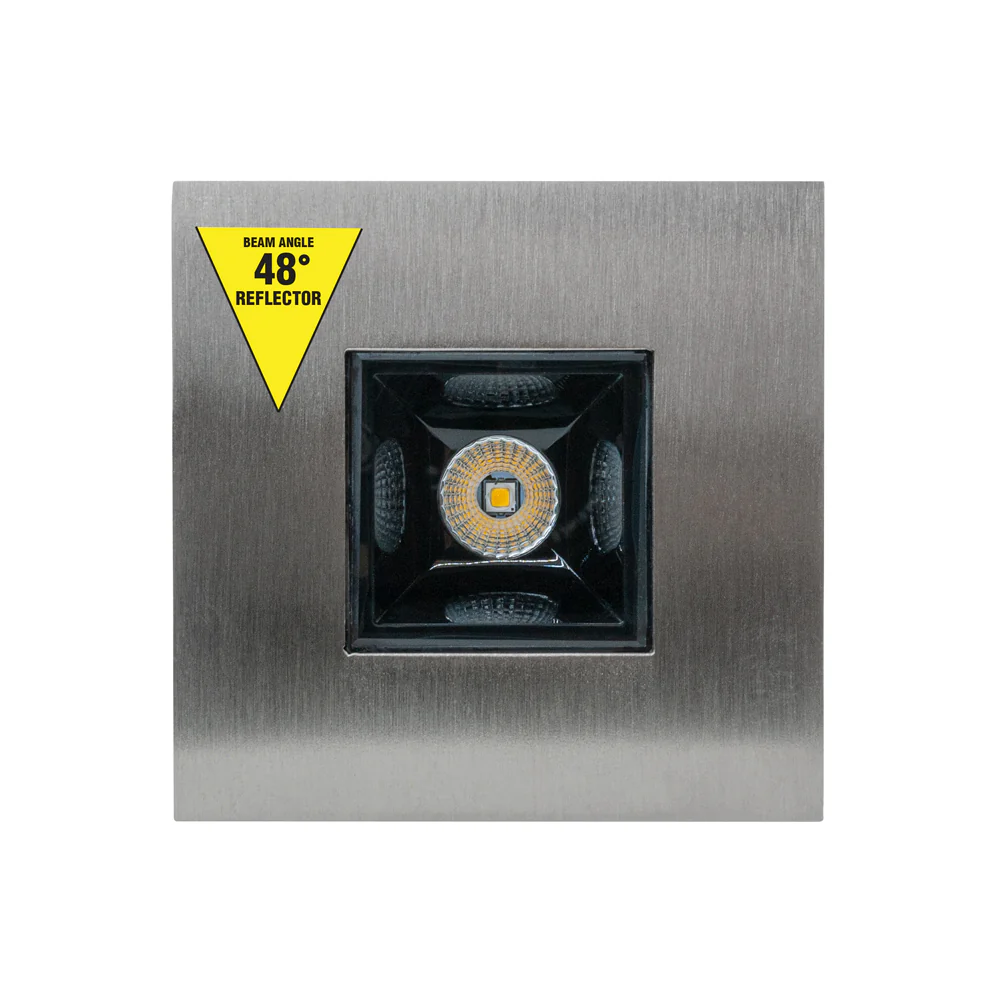

Optics	Secondary optics (Reflector)

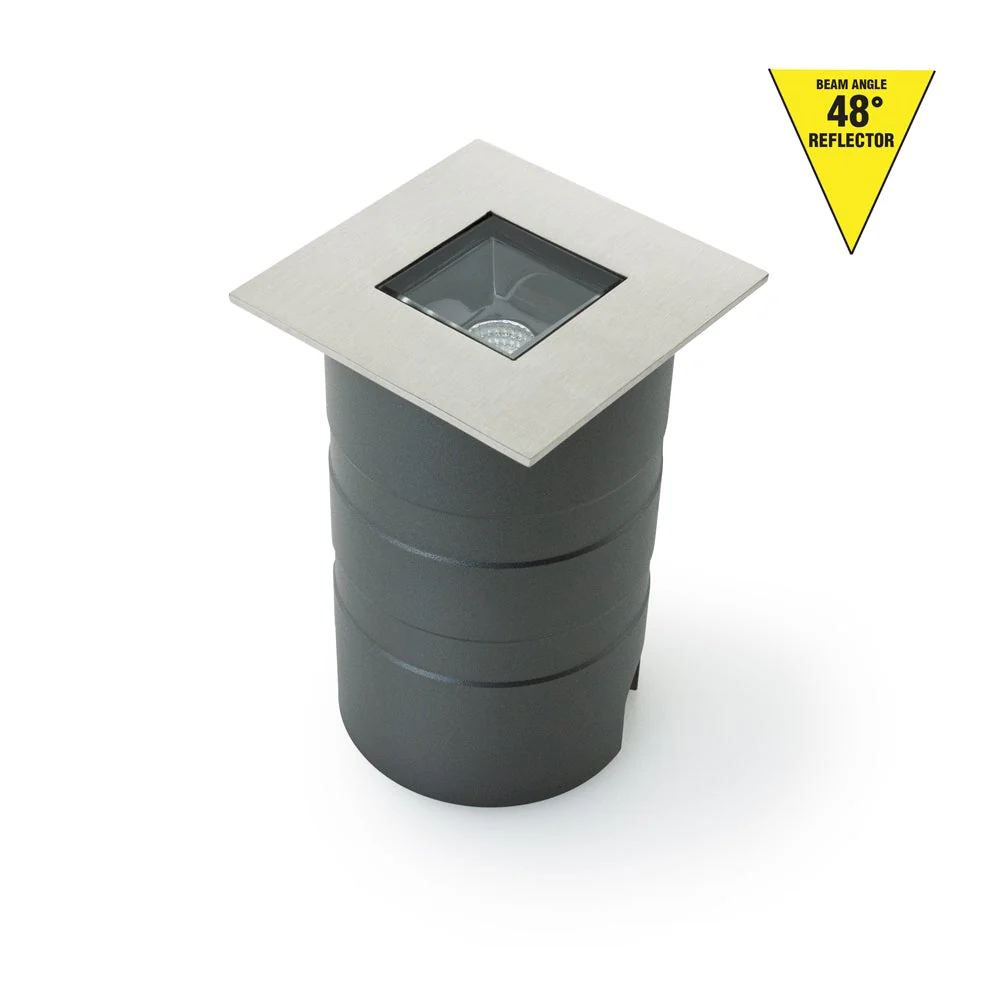

Beam Angle	48° Reflector
IP Rating	IP67
IK Rating	IK06
Dimmable	Yes
Cut Size	Ø57.73mm (2.27in)
Cable Size	Length: 1m (3.2ft) Ø7.5mm (0.29in) 18AWG
Dimensions with Housing	Side – 65 mm (2.5 inches) Height – 100 mm (3.95 inches) Base Diameter – 61 mm (2.4 inches)
Dimensions without Housing	Side –  65 mm (2.5 inches) Height – 61mm (2.4 inches)
Certification



Features:

• Glass reflectors are incorporated to help scatter more light and create glare, making them suitable for spotlight applications where enhanced illumination is desired.
• These mini in-ground lights are not only suitable for residential applications but also fit well in commercial buildings and shopping malls, offering versatile lighting solutions for various settings.
• This up-light inground fixture seamlessly integrates into a wide variety of outdoor applications, providing flexibility and adaptability for different outdoor lighting needs.
• It creates a unique ambiance and offers functional illumination, making it ideal for walkways, garden lighting, and other desired applications where both aesthetics and practicality are important.
• The fixture provides maximum flexibility in power options, allowing for the use of single or multiple LED Light transformers in both dimmable and non-dimmable configurations, providing versatility and control over the lighting setup.

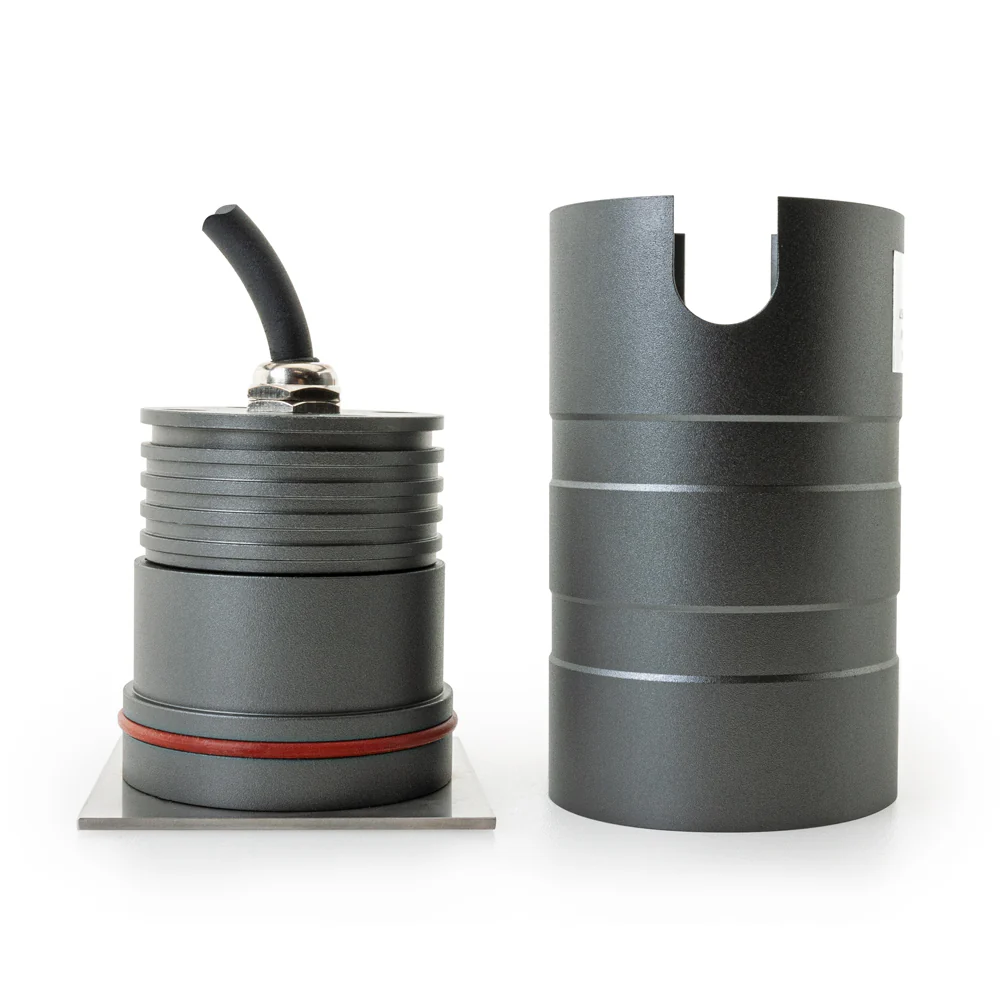

• It comes with a housing, giving the option for installation with or without the housing, depending on individual preferences and installation requirements.

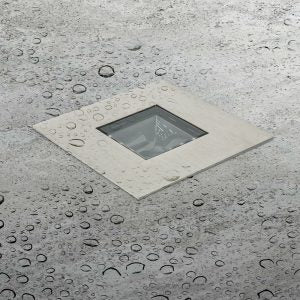

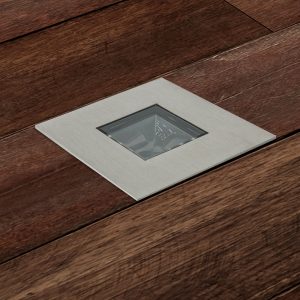

• These recessed lights have an aesthetic appeal and are popularly installed as LED pathway lights, pool deck lights, and patio lights, enhancing the visual appeal and functionality of outdoor spaces.
• The IP67 rating ensures that the lights stay lit in all types of weather conditions and are resilient to being stepped upon, ensuring durability and reliability in outdoor environments.
